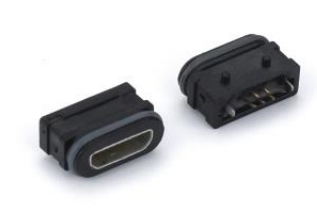

MICRO USB SOCKET Micro/Mini USB
IP67 Micro5P BF SMT
防水Micro 5p-05-014
防水Micro 5P BF立式直插DIP 6.35H
FEATURE
‧11.00mm*8.00mm
‧ Pin No.: 5 pin
‧ Vertica
‧ Waterproof IPX7
APPLICATIONS
‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment
產品說明
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 额定电流/Current Rating | 5.0A MAX |
|---|
| 额定电压/Voltage Rating | 100VAC |
|---|
| 接触电阻/Contact Resistance | 40 millionhm max |
|---|
| 尺寸/Dimension | 11.00mm*8.00mm |
|---|
| 温度/temperature range | -30℃~85℃ |
|---|
| 绝缘电阻/Insulation Resistance | 100 megohms min |
|---|

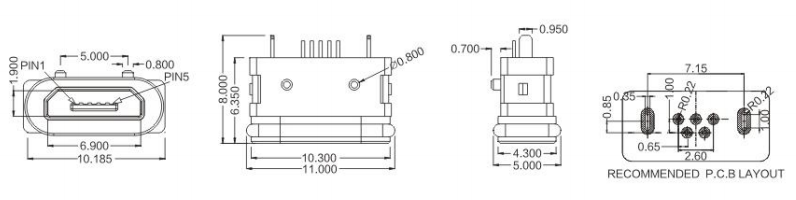

DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|
防水Micro 5p-05-14 | |
