MICRO USB SOCKET Micro/Mini USB

Micro USB  BMOF-05-002
MICRO USB

Micro USB BMOF-05-002

Micro 5P BF插板5.9mm两脚DIP 直边卷边 FEATURE ‧5.65mm*5.63mm ‧ Pin No.: 5 pin ‧ Power strip APPLICATIONS ‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension

5.65mm*5.63mm

温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min

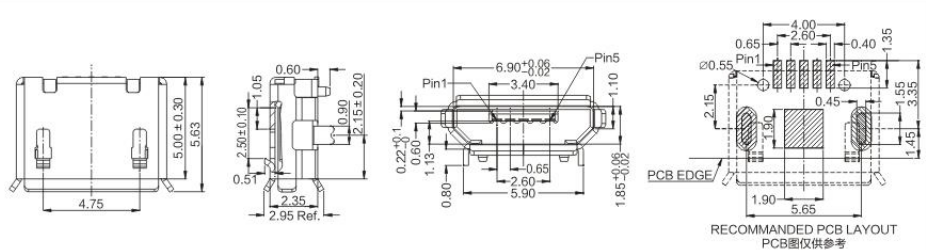

DIMENSIONS

Unit:mm

ModelDimensions

Micro USB BMOF-05-002

Micro USB  BMOF-05-002
Micro USB  BMOF-05-002
