MICRO USB SOCKET Micro/Mini USB
Micro USB

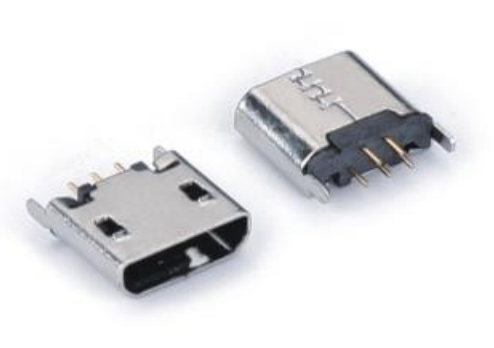

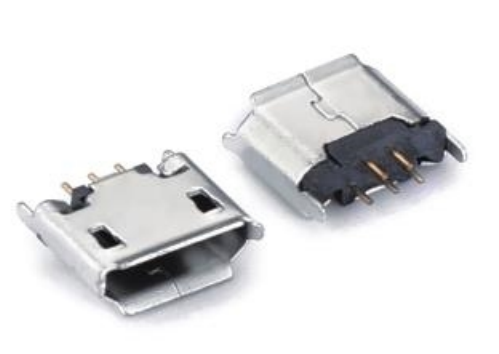

Micro USB BMOF-05-014/015
Micro5P BF180度直插5.6H/6.0H直边卷边
FEATURE
‧8.0mm*7.6mm
‧ Pin No.: 5 pin
‧ Power strip
APPLICATIONS
‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment
產品說明
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 额定电流/Current Rating | 5.0A MAX |
|---|
| 额定电压/Voltage Rating | 100VAC |
|---|
| 接触电阻/Contact Resistance | 40 millionhm max |
|---|
| 尺寸/Dimension | 8.0mm*7.6mm |
|---|
| 温度/temperature range | -30℃~85℃ |
|---|
| 绝缘电阻/Insulation Resistance | 100 megohms min |
|---|

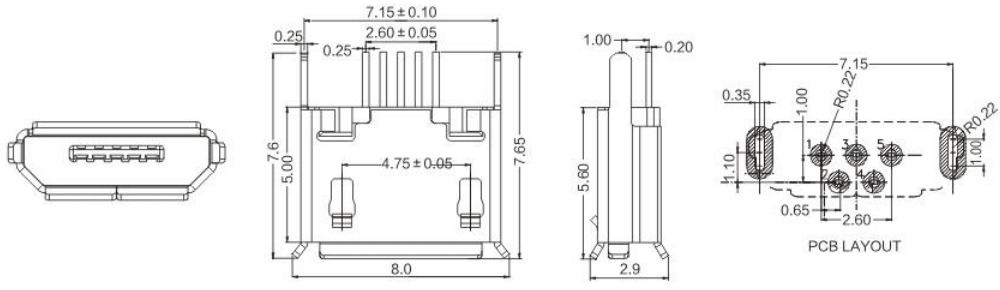

DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|
| Micro USB BMOF-05-014
|  |
| Model | Dimensions |
|---|
Micro USB BMOF-05-015 |  |
