MICRO USB SOCKET Micro/Mini USB
Micro USB
Micro USB BMOF-05-021/022
Micro5P BF180度立式贴片SMT5.60H全贴/有柱卷边
FEATURE
‧ 7.9mm*5.80mm
‧ Pin No.: 5 pin
‧ Vertica
APPLICATIONS
‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment
產品說明
COMMON SPECIFICATIONS
Characteristics | Specification |
---|
额定电流/Current Rating | 5.0A MAX |
---|
额定电压/Voltage Rating | 100VAC |
---|
接触电阻/Contact Resistance | 40 millionhm max |
---|
尺寸/Dimension | 7.9mm*5.80mm |
---|
温度/temperature range | -30℃~85℃ |
---|
绝缘电阻/Insulation Resistance | 100 megohms min |
---|
DIMENSIONS
Unit:mm
Model | Dimensions |
---|

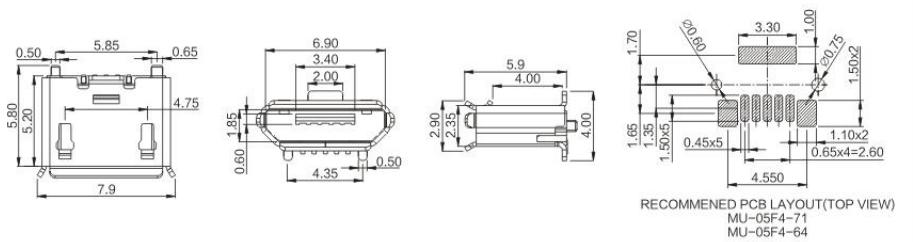

Micro USB BMOF-05-021
|  |
Model | Dimensions |
---|

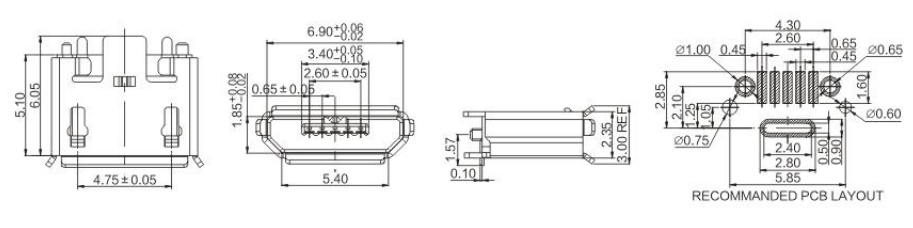

Micro USB BMOF-05-022 |  |
