TK-1180 Series

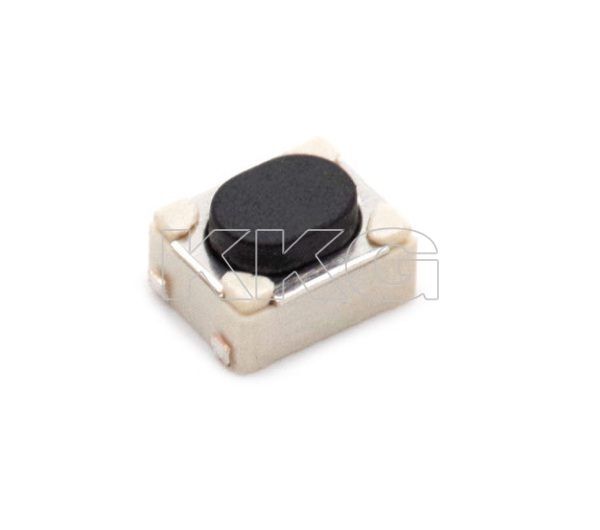

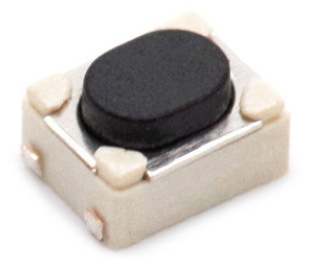

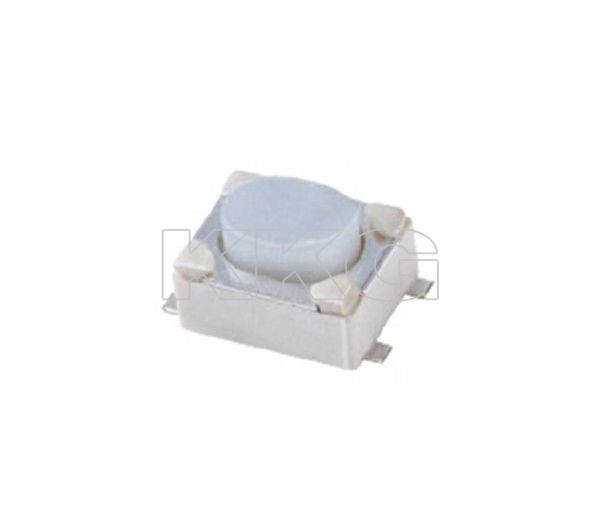

SMT VERTICAL Type, 輕觸開關 FEATURE 4.2mm*3.2mm, surface mounting type.. ‧Reflow solderable. APPLICATIONS ‧ For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.

檔案下載產品詢價

產品說明

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-20℃ to +70℃
操作力/Operating force	100、160、260、320gf
行程/Travel	0.25mm

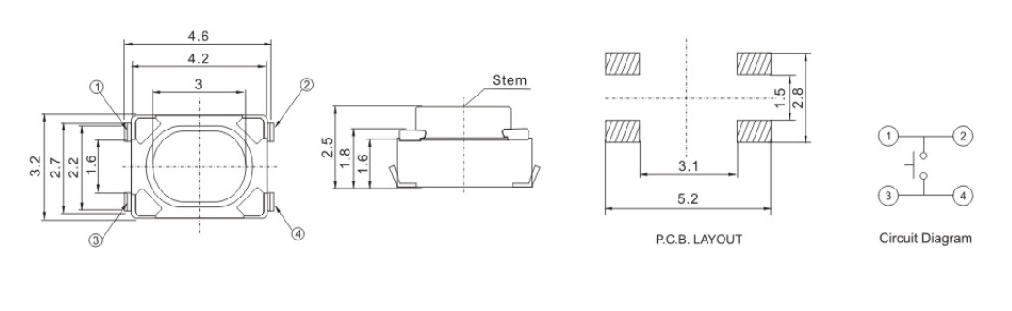

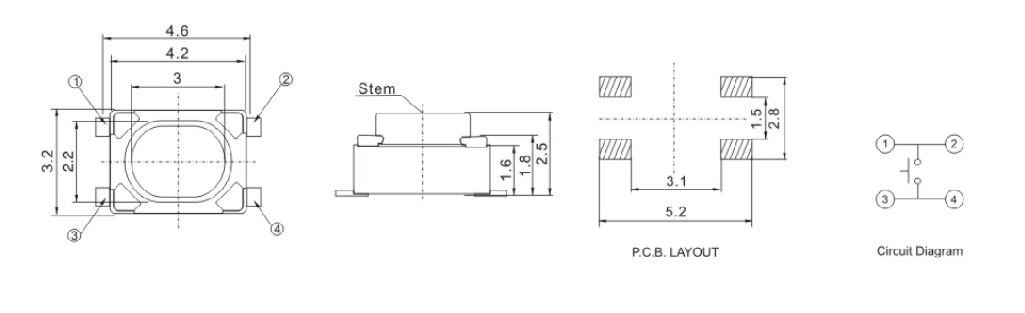

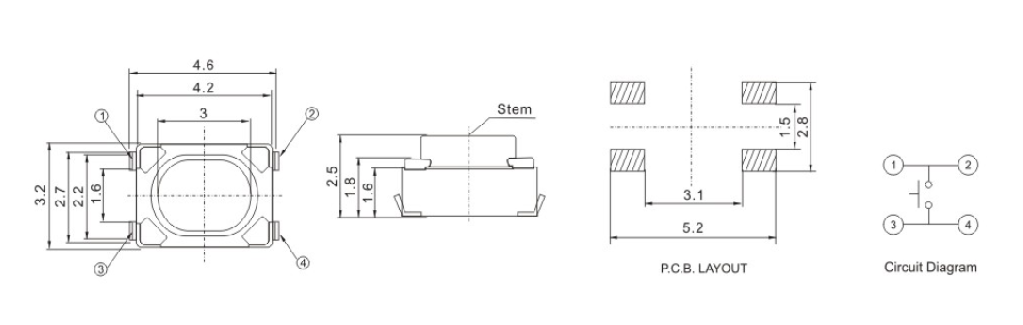

尺寸/Dimension	4.23.22.5mm
使用壽命/Operating life	100,000 cycles
最大額定值/Maximum ratings	DC12V 50mA
絕緣電阻/Insulation resistance	100MΩ min
耐電壓/Voltage proof	1 minute 250V AC
