TOUCH SWITCH 輕觸開關

TK-024 series
TK-024 series
TK-024 series
TK-024 series

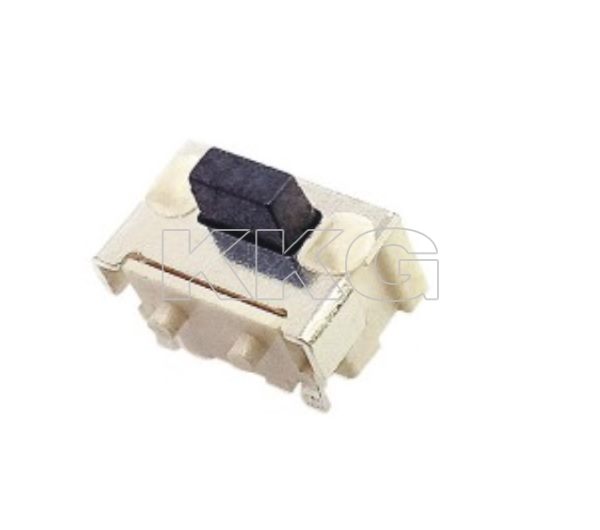

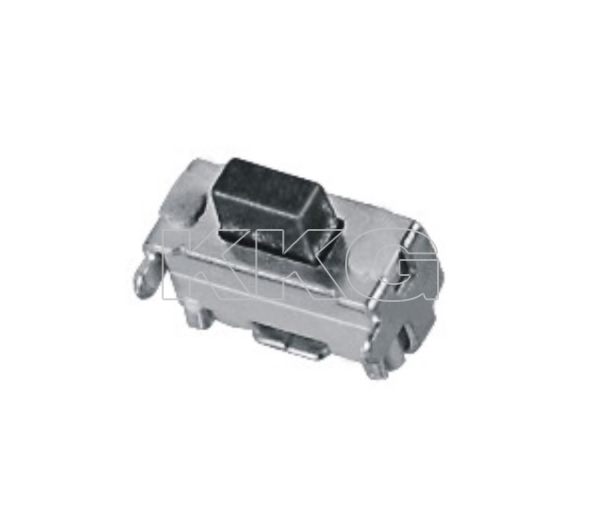

Right Angle Ultra Miniature Tact Switch

TK-024 series

Right Angle SMT Tact Switch, 輕觸開關 4.5mm*2.3mm FEATURE ‧Silver plated contacts ‧Reflow solderable. APPLICATIONS ‧ For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-30℃ to +85℃
操作力/Operating force100gf、160gf、260gf
行程/Travel0.25mm
尺寸/Dimension4.5* 2.3mm
使用壽命/Operating life100,000 cycles
最大額定值/Maximum ratingsDC12V 50mA
絕緣電阻/Insulation resistance100MΩ min
耐電壓/Voltage proof1 minute 250V AC


DIMENSIONS

ModelDimensions

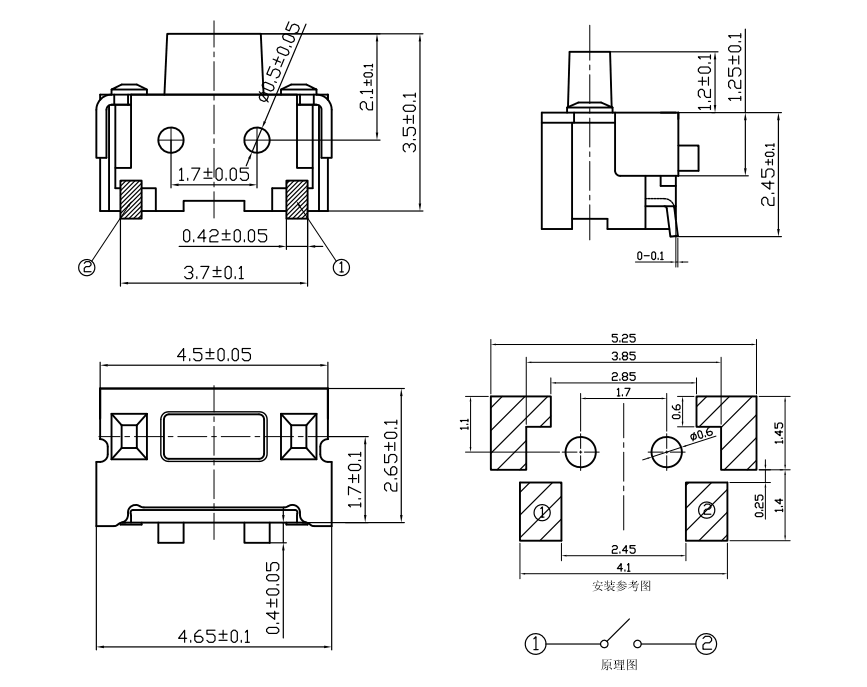

TK-024


TK-024 series

TK-024 series


ModelDimensions

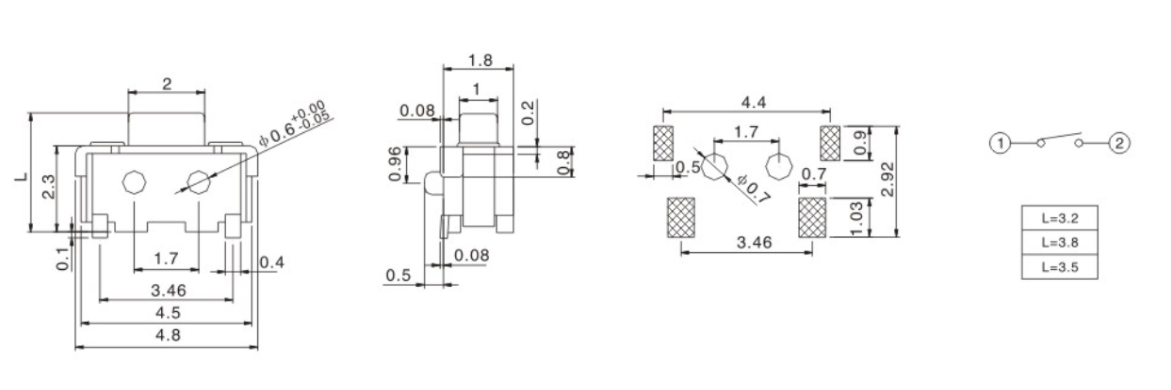

TK-024B

TK-024 series
TK-024 series


ModelDimensions

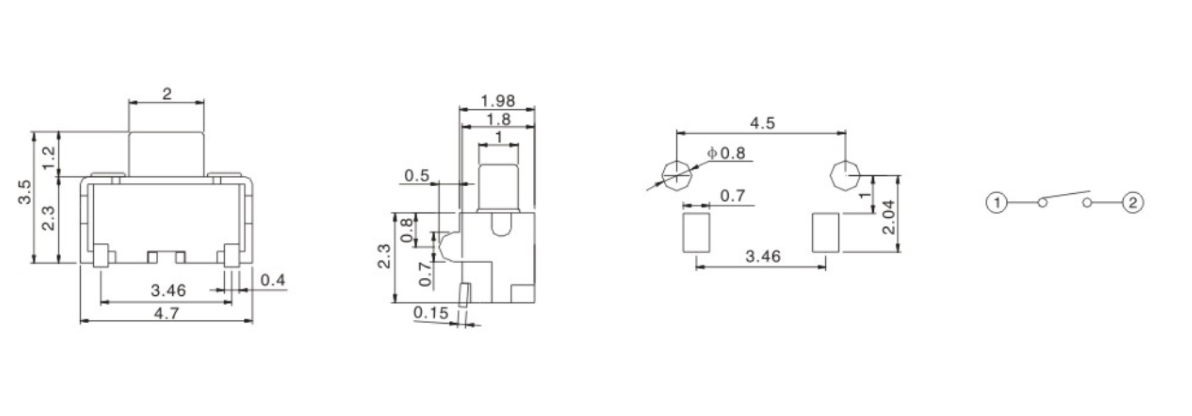

TK-024D


TK-024 series

TK-024 series
