TOUCH SWITCH 輕觸開關

TK-1062 Series
TK-1062 Series
TK-1062 Series
TK-1062 Series
Ultraminiature SMT Tact Switch

TK-1062 Series

SMT VERTICAL Type, 輕觸開關 FEATURE 6.2mm*6.2mm, surface mounting type.. ‧Reflow solderable. APPLICATIONS ‧ For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-20℃ to +70℃
操作力/Operating force100、160、260gf
行程/Travel0.25mm
尺寸/Dimension6.2*6.2mm
使用壽命/Operating life100,000 cycles
最大額定值/Maximum ratingsDC12V 50mA
絕緣電阻/Insulation resistance100MΩ min
耐電壓/Voltage proof1 minute 250V AC

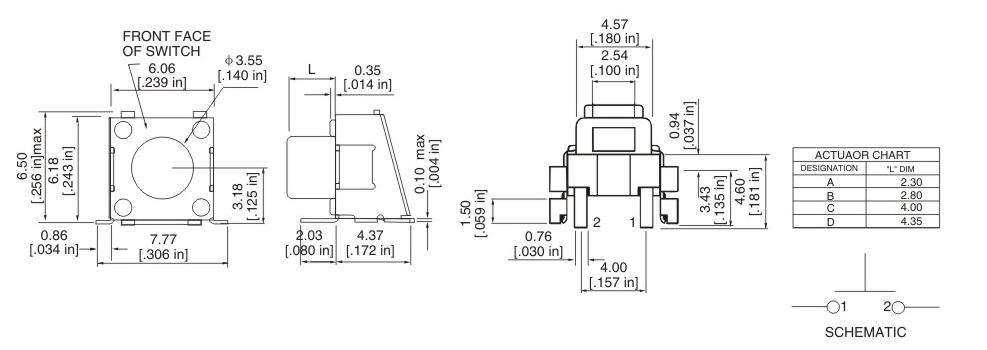

DIMENSIONS

Unit:mm

ModelDimensions

TK-1062

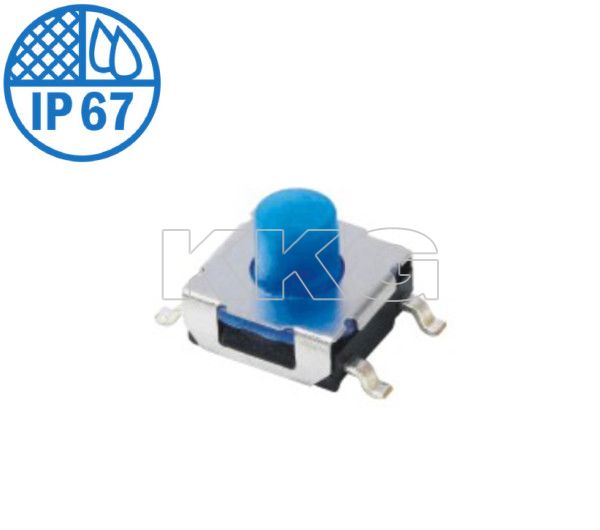

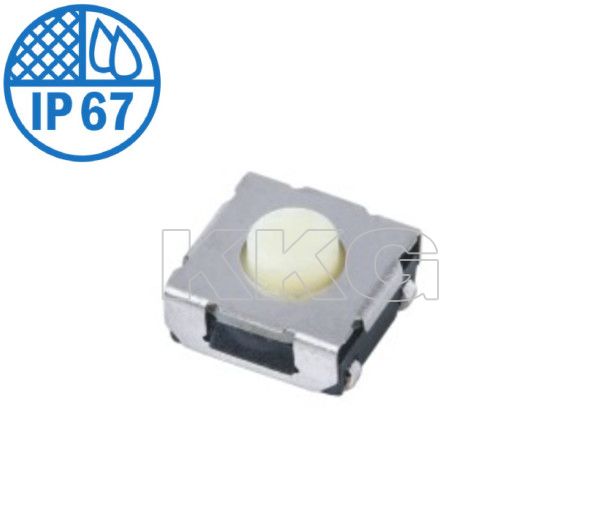

TK-1062 Series

TK-1062 Series

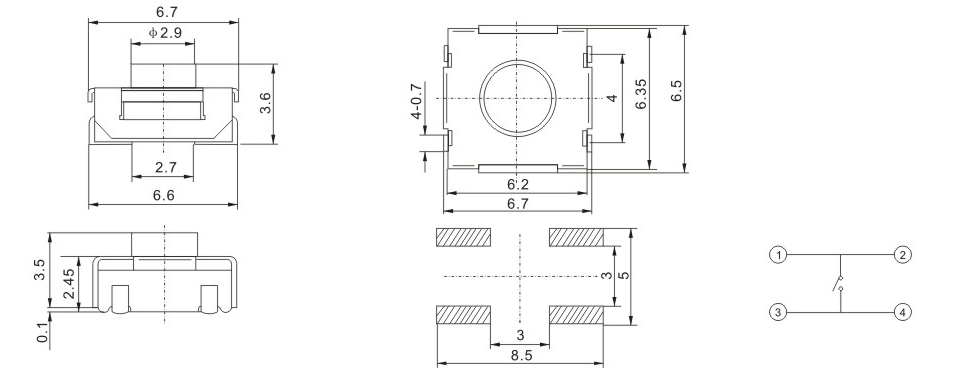

ModelDimensions
TK-1062STK-1062 SeriesTK-1062 Series

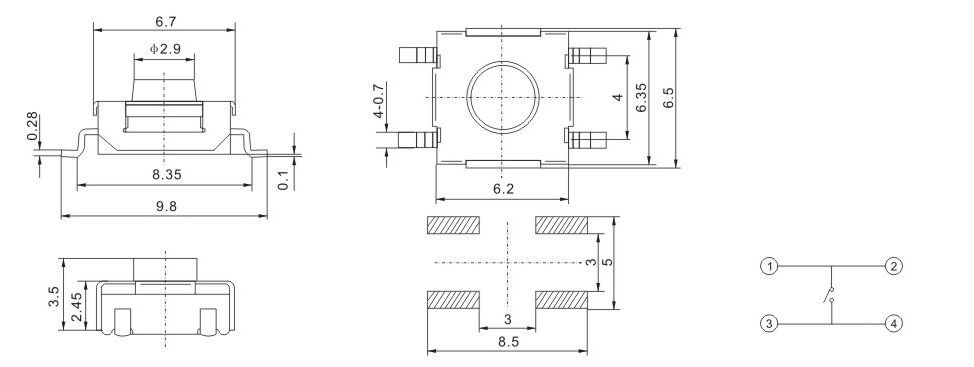

ModelDimensions

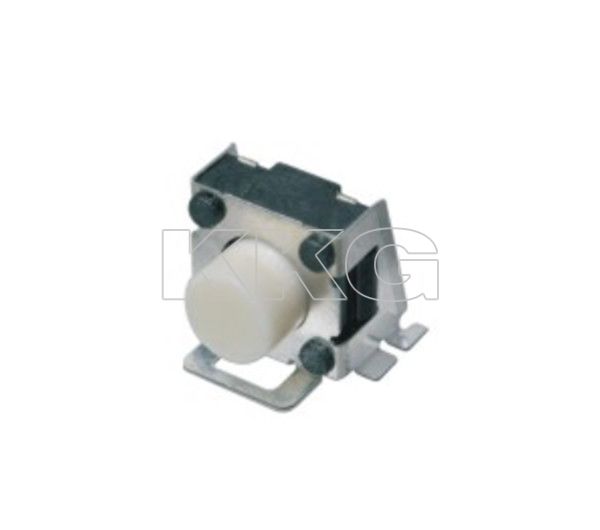

TK-1062HTK-1062 SeriesTK-1062 Series
