SIM Card Connectors
SIM-2062
SIM卡座
MICRO SIM PUSH H1.29
FEATURE
surface mounting type..
‧Reflow solderable.
Application:
Digital products, computers, communication products, household appliances, etc.
產品說明
COMMON SPECIFICATIONS
Characteristics | Specification |
---|
工作溫度範圍/Operating temperature range | -25℃ ~90℃ |
---|
接觸電阻/Contact resistance | ≤100mΩ |
---|
尺寸/Dimension | 15*15.7*1.29mm |
---|
使用壽命/Operating life | 5000 cycles |
---|
最大額定值/Maximum ratings | DC 5V 0.5A |
---|
絕緣電阻/Insulation resistance | ≥100MΩ |
---|
耐電壓/Voltage proof | 500V AC |
---|

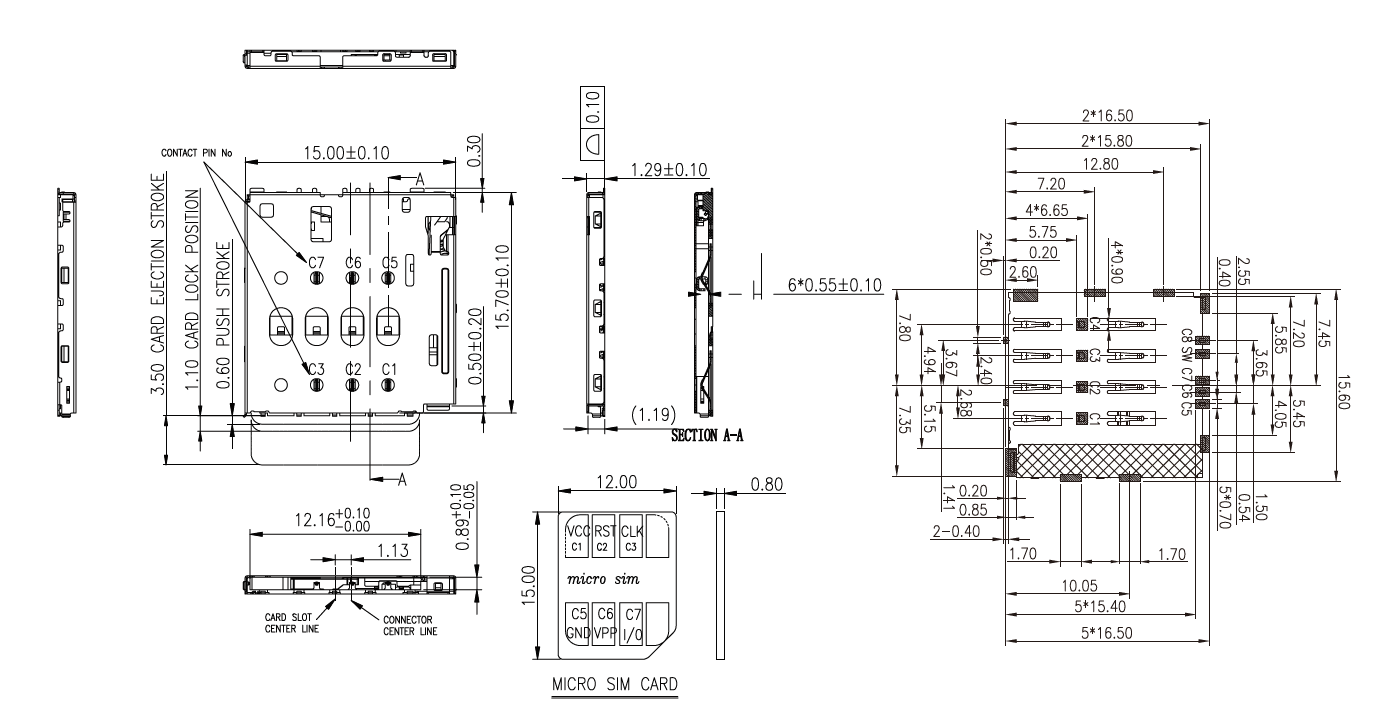

DIMENSIONS
Unit:mm
Model | Dimensions |
---|
SIM-2062
| |
Unit:mm
Unit:mm
Unit:mm
