SLIDE SWITCH 滑動開關

SS-2218A
Sub-miniature Slide Switches

SS-2218A

7.05mm*3.50mm 小型貼片撥動開關 Function ‧2P2T function ‧SMT design ‧1.50mm travel ‧Compact design APPLICATIONS The mouse keyboard, digital camera, bluetooth headset, car, mobile phone, the sound


產品說明

COMMON SPECIFICATIONS


 Characteristics

Specification
工作溫度範圍/Operating temperature range-25℃ to +80℃
操作力/Operating force130gf
行程/Travel1.5mm
尺寸/Dimension7.05mm*3.50mm
使用壽命/Operating life100,00 cycles
最大額定值/Maximum ratingsDC4V 300mA
絕緣電阻/Insulation resistance100MΩ min
耐電壓/Voltage proof1 minute 250V AC

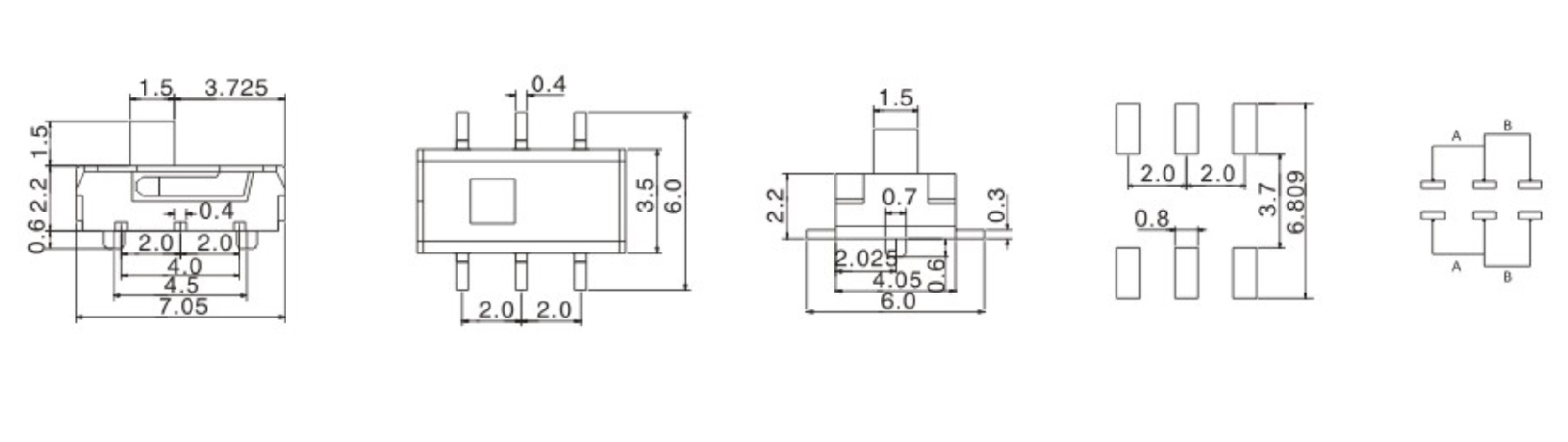

DIMENSIONS

Unit:mm

ModelDimensions




SS-2218ASS-2218A




SS-2218A

Unit:mm


Unit:mm
