SLIDE SWITCH 滑動開關

SS-2318
Sub-miniature Slide Switches

SS-2318

13.00mm*3.50mm 小型插件撥動開關 Function ‧2P3T function ‧DIP design ‧2.00mm travel ‧Compact design APPLICATIONS The mouse keyboard, digital camera, bluetooth headset, car, mobile phone, the sound


產品說明

COMMON SPECIFICATIONS


 Characteristics

Specification
工作溫度範圍/Operating temperature range-25℃ to +80℃
操作力/Operating force200gf
行程/Travel2.00mm
尺寸/Dimension13.00mm*3.50mm
使用壽命/Operating life100,00 cycles
最大額定值/Maximum ratingsDC4V 300mA
絕緣電阻/Insulation resistance100MΩ min
耐電壓/Voltage proof1 minute 500V AC

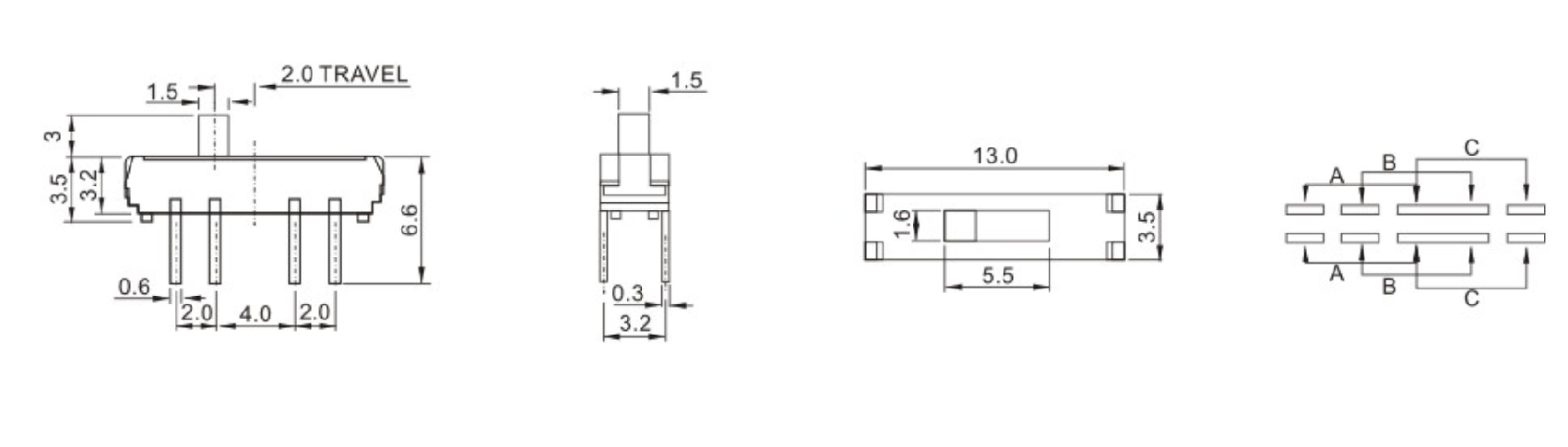

DIMENSIONS

Unit:mm

ModelDimensions




SS-2318SS-2318




SS-2318

Unit:mm


Unit:mm
