SD卡座

SD-2652
SD Card Connectors

SD-2652

SD卡座 SD NO PUSH 长体卡座黑、白胶 FEATURE surface mounting type.. ‧Reflow solderable. Application: Digital products, computers, communication products, household appliances, etc.


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-25℃ ~90℃
接觸電阻/Contact resistance≤100m
尺寸/Dimension27.8*25.1*2.75mm
使用壽命/Operating life5000 cycles
最大額定值/Maximum ratingsDC 5V 0.5A
絕緣電阻/Insulation resistance≥100MΩ
耐電壓/Voltage proof500V AC

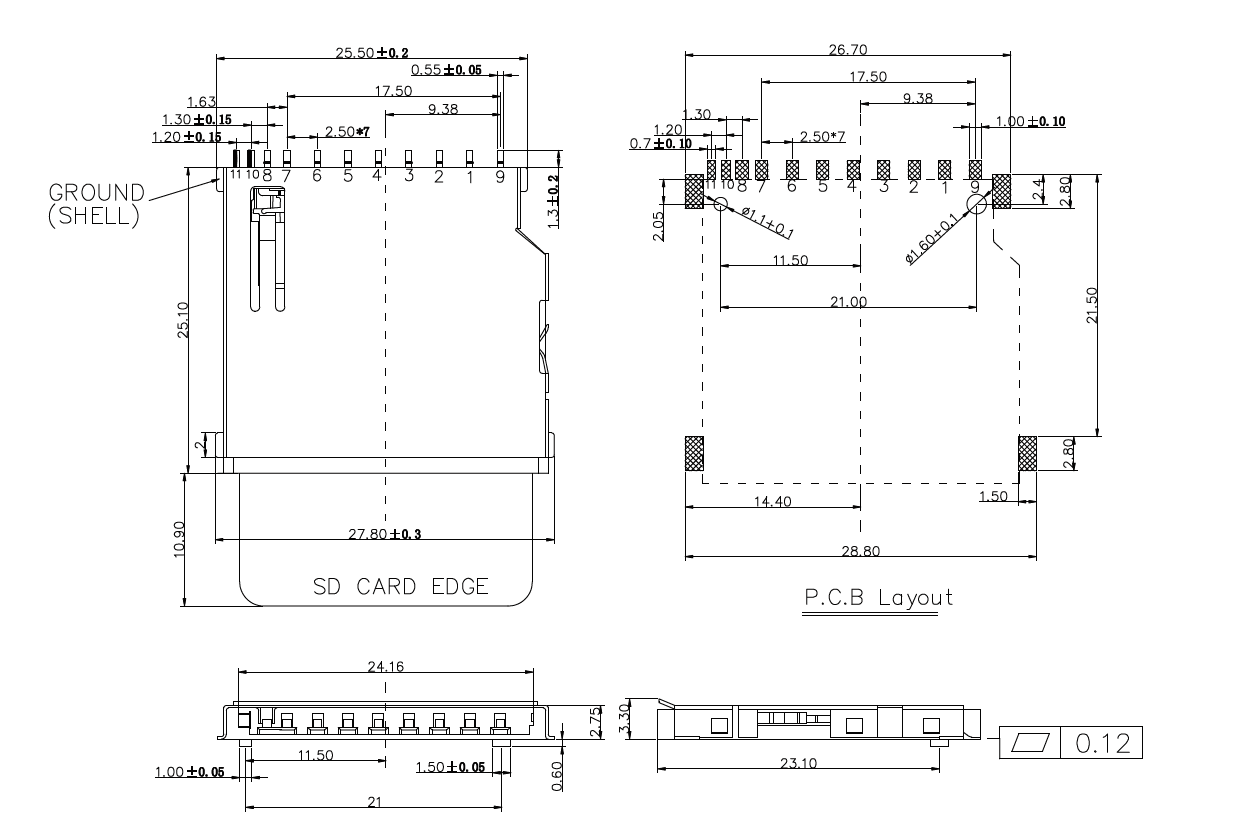

DIMENSIONS

Unit:mm

ModelDimensions




SD-2652SD-2652





SD-2652




Unit:mm



Unit:mm

Unit:mm
