BUTTON 按鍵開關

PS58-05-SMT
FLAT HEAD PUSH SWITCH

PS58-05-SMT

立式SMT,自锁/无锁 按键开关 5.80mm*5.80mm H=10.50mm FEATURE Small contact resistance, accurate operating force error, diversified specifications and other advantages Wave soldering APPLICATIONS Audio and video products, digital products, remote control, communication products, household appliances, security products, toys, computer products, fitness equipment, medical equipment, cash detector, laser pen button, etc


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-10℃ to 70℃
操作力/Operating force350±50gf
尺寸/Dimension5.80*5.80mm
使用壽命/Operating life100,000 cycles
最大額定值/Maximum ratingsDC30V 0.1A
行程/Travel

3.0±0.3mm

接触电阻/Contact Resistance
100Ωmax

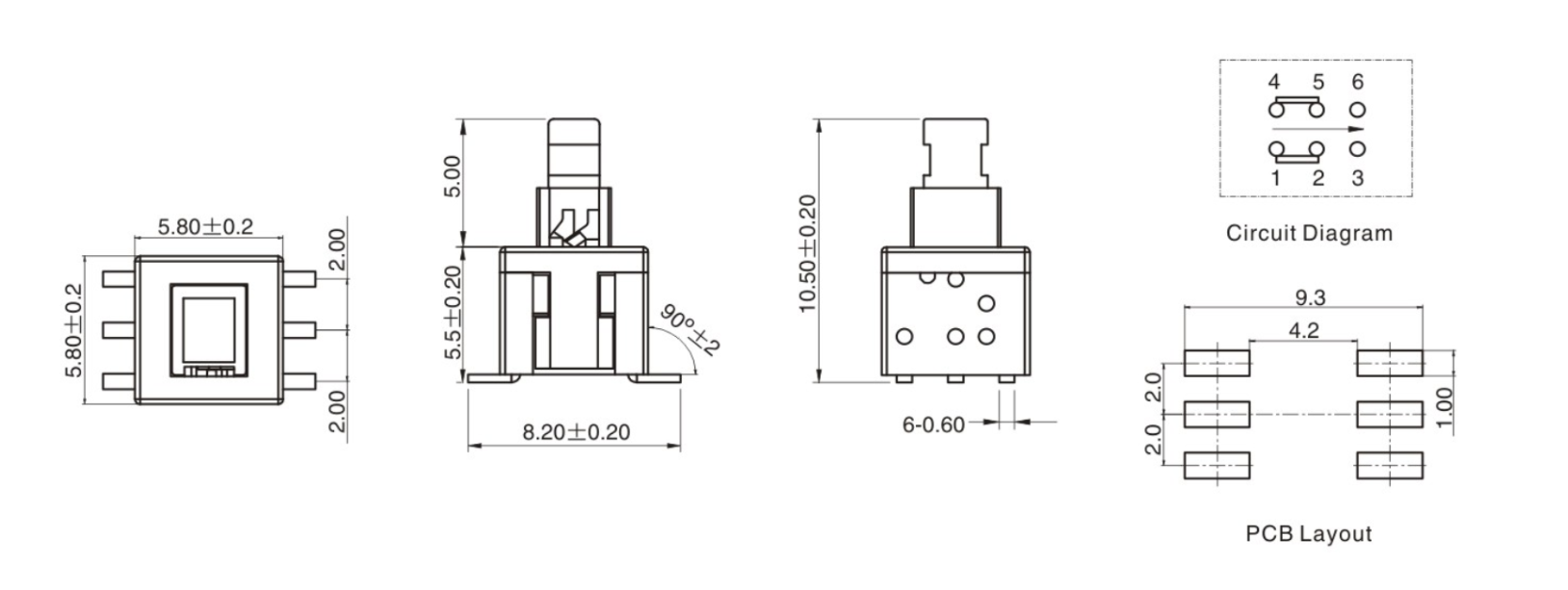

DIMENSIONS

Unit:mm

ModelDimensions

PS58-05-SMT

PS58-05-SMT


PS58-05-SMT
