BUTTON 按鍵開關

PS-22F03A03
HORIZONTAL PUSH SWITCH

PS-22F03A03

卧式DIP,自锁/无锁 按键开关 7.80mm*12.30mm H=25mm FEATURE Small contact resistance, accurate operating force error, diversified specifications and other advantages Manual welding APPLICATIONS Audio and video products, digital products, remote control, communication products, household appliances, security products, toys, computer products, fitness equipment, medical equipment, cash detector, laser pen button, etc


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-10℃ to 70℃
操作力/Operating force250gf ,400gf,500gf
尺寸/Dimension7.80*12.30mm
使用壽命/Operating life100,000 cycles
最大額定值/Maximum ratingsDC30V 0.1A
行程/Travel

2.0mm

接触电阻/Contact Resistance
100Ωmax

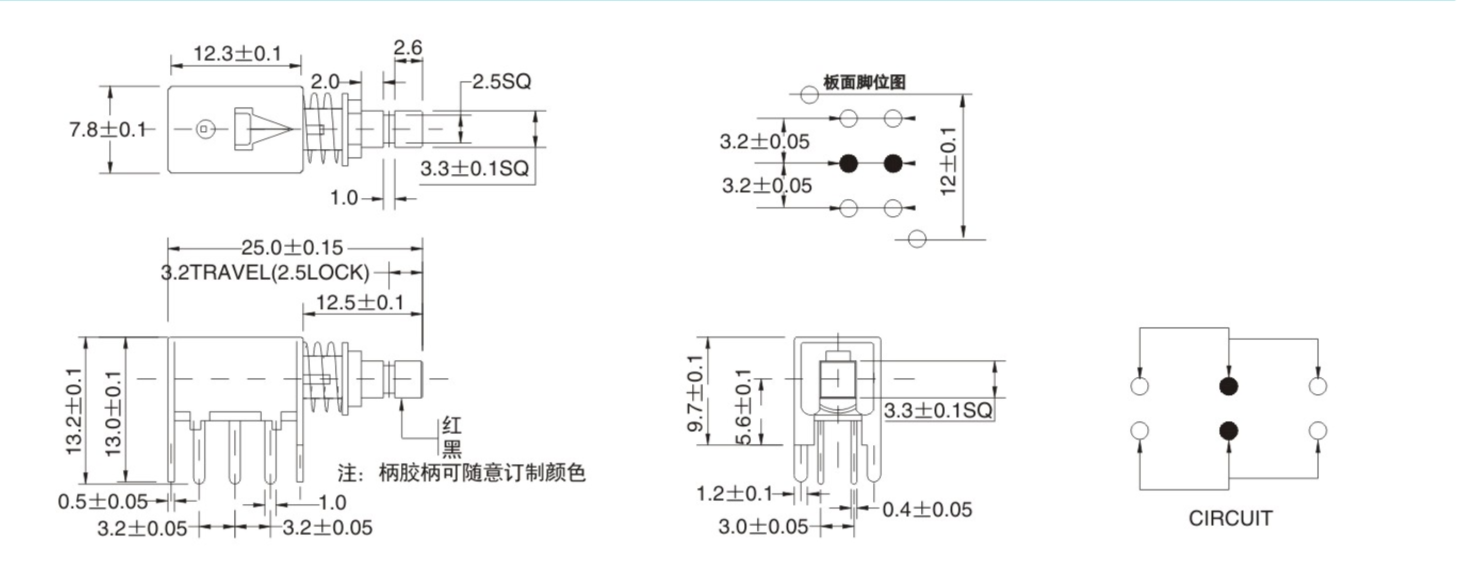

DIMENSIONS

Unit:mm

ModelDimensions

PS-22F03A03PS-22F03A03

PS-22F03A03
