SLIDE SWITCH 滑動開關

SK-20 series
SK-20 series
SK-20 series
Sub-miniature Slide Switches

SK-20 series

10.00mm*6.40mm 小型插件撥動開關 Function ‧1P2T function ‧DIP design ‧1.6mm travel ‧Compact design APPLICATIONS The mouse keyboard, digital camera, bluetooth headset, car, mobile phone, the sound

檔案下載 產品詢價

產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-30℃ to +85℃
操作力/Operating force800gf
行程/Travel1.60mm
尺寸/Dimension10.00* 6.40mm
使用壽命/Operating life1000 cycles
最大額定值/Maximum ratings(0.5A 12V)(0.3A 24V)
絕緣電阻/Insulation resistance30MΩ min
耐電壓/Voltage proof1 minute 250V AC

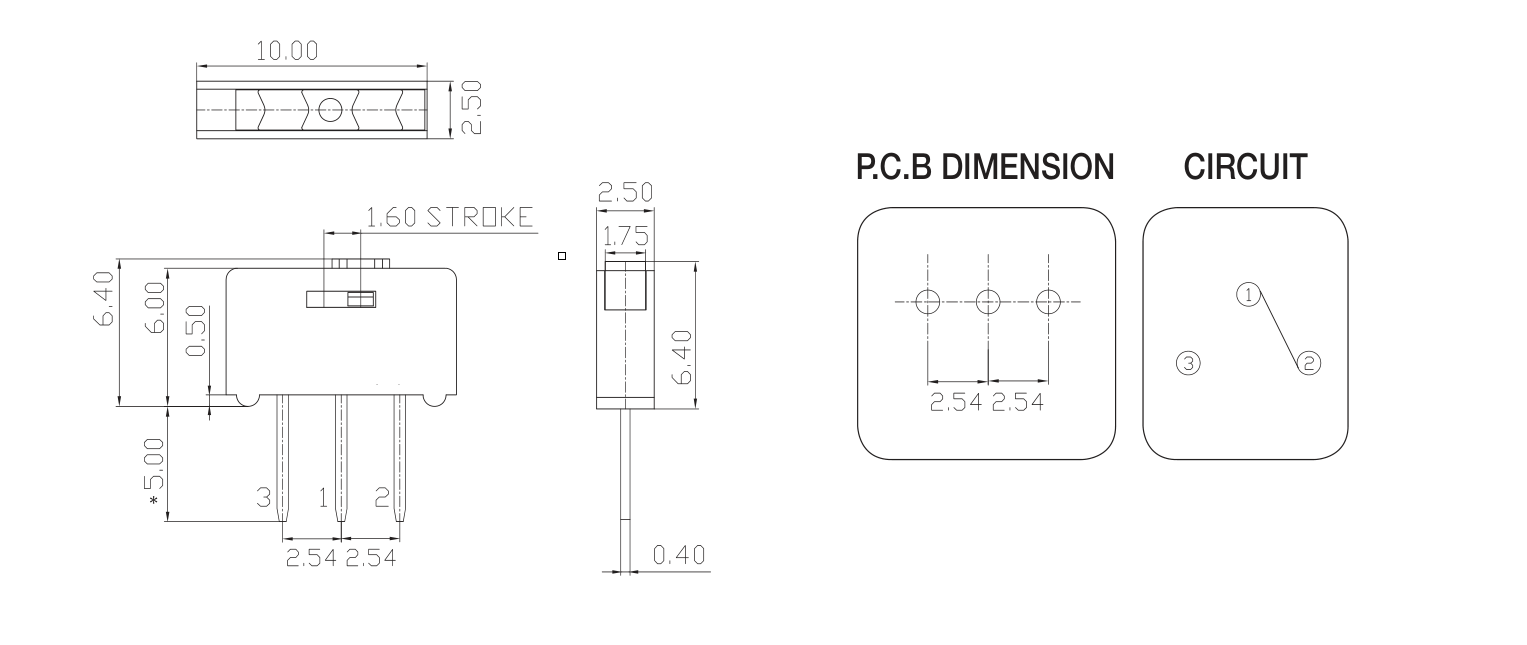

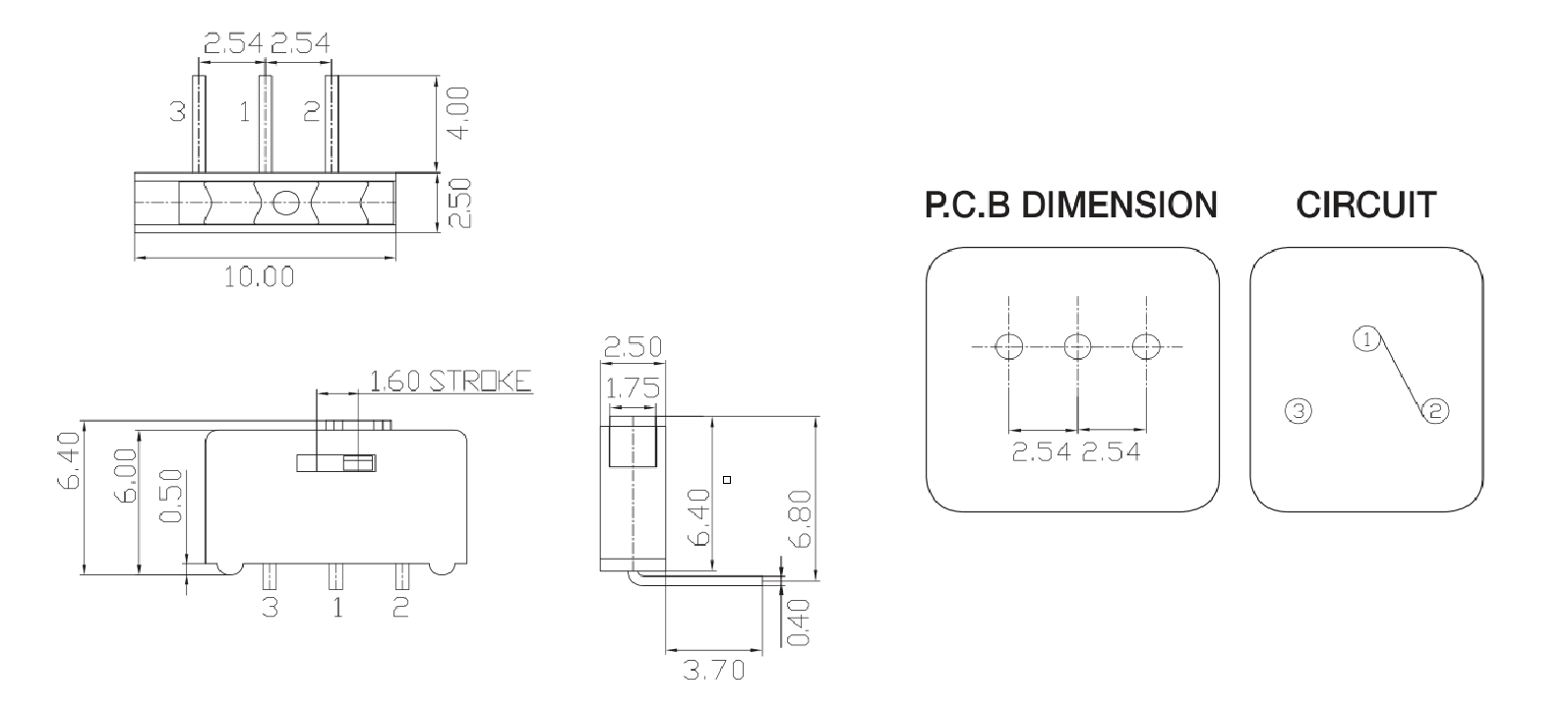

DIMENSIONS

Unit:mm

ModelDimensions

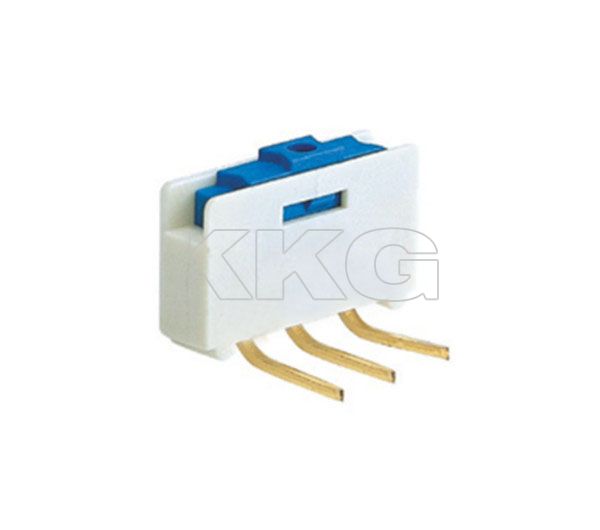

SK-20HSK-20 series

SK-20 series


ModelDimensions

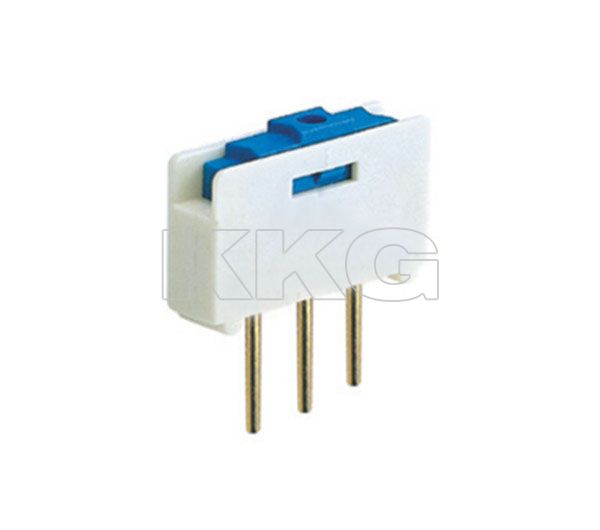

SS-20SK-20 seriesSK-20 series
