防水鈕子開關

TG-SW2B series
Waterproof Twizz switch

TG-SW2B series

卧式SMD IP67 防水切换開關 FEATURE Small contact resistance, accurate operating force error, diversified specifications and other advantages miniature waterproof APPLICATIONS Suitable for consumer products, computer products, test instruments, communication equipment, etc


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
CONTACT RATINGDependent upon contact material.
MECHANICAL LIFE 30,000 make-and-break cycles.
CONTACT RESISTANCE20mΩmax. initial @ 2-4VDC  100mAfor both silver and gold plated contacts.
INSULATION RESISTANCE 1,000MΩmin.
DIELECTRIC STRENGTH 1,000 V RMS@sea level.
OPERATING TEMPERATURE-30°C to 85°C.


HOW  TO  ORDER

                            TG-SW2B series

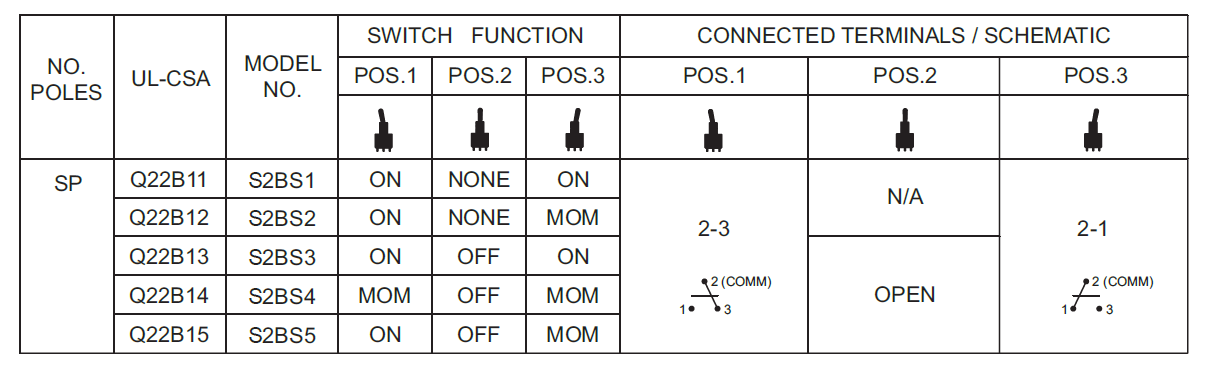

SWITCH  FUNCTION

                         TG-SW2B series
