CODING SWITCH 編碼開關

RS-15 series
RS-15 series
RS-15 series
RS-15 series
RS-15 series

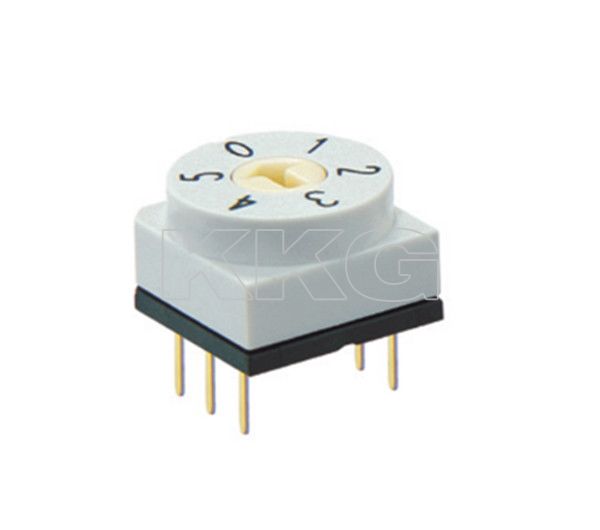

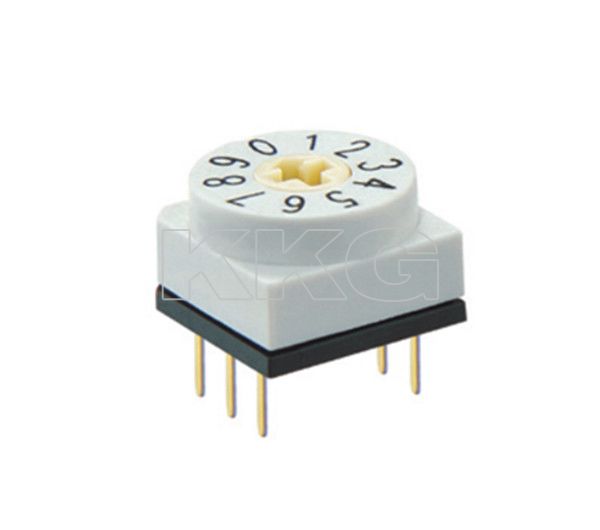

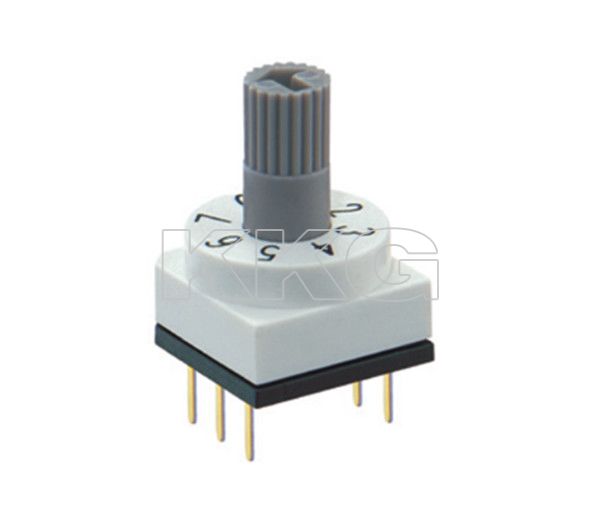

NEW MINI ROTARY DIP SWITCHES

RS-15 series

10.00mm*10.00mm 迷你旋转编码开关 FEATURE ‧10.00mm*10.00mm ‧Vertical DIP ‧0-3,0-5, 0-7,0-9 Position APPLICATIONS ‧ Mainly used in automotive electronics, multimedia audio, instruments and meters, household appliances, smart home, computer, medical equipment and other fields.


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
接觸電阻/Contact resistance80mA
操作力/Operating force700gf
尺寸/Dimension10.00*10.00mm
使用壽命/Operating life10000  cycles
絕緣電阻Insulation resistance100mA
防水等級/waterproof levelIP67

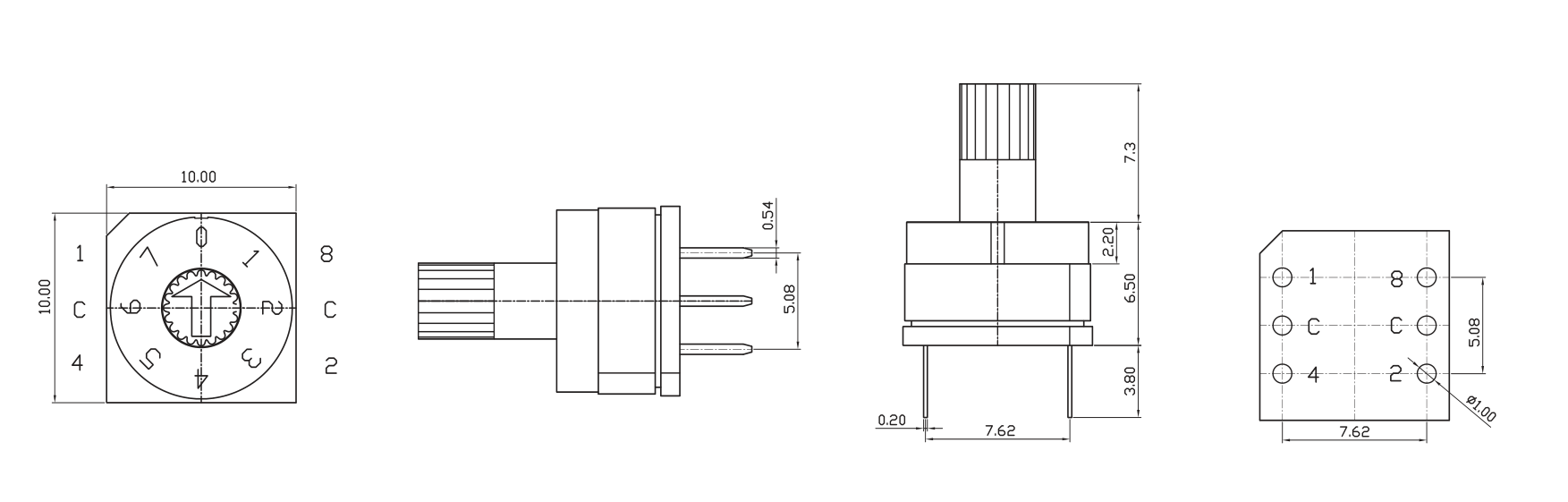

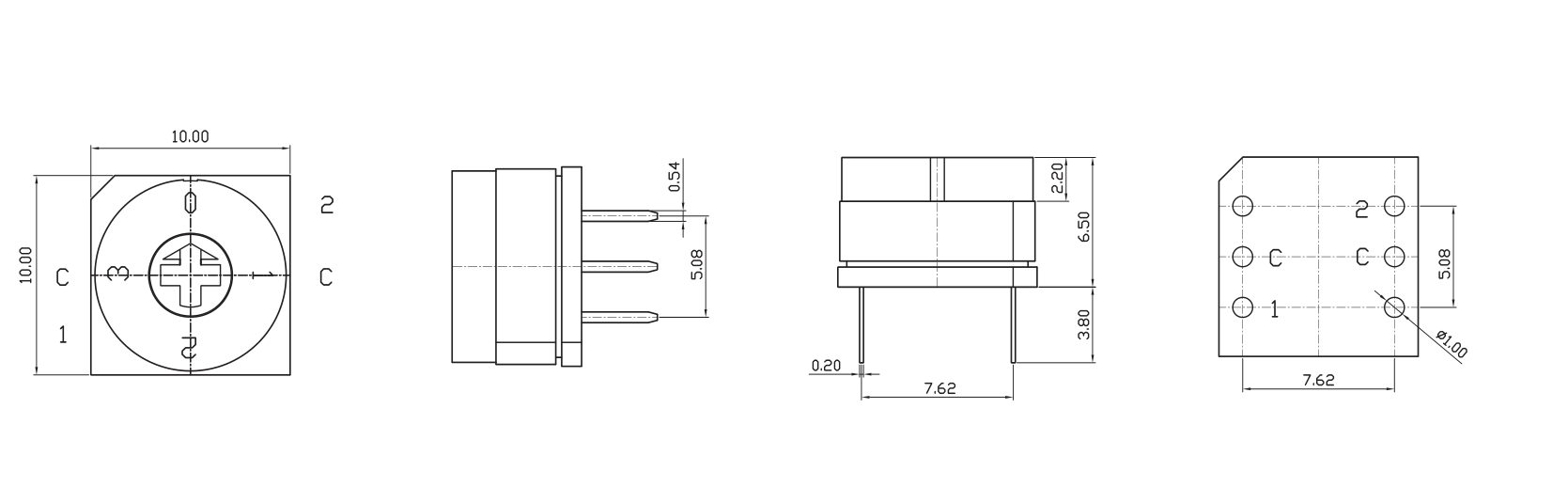

DIMENSIONS

Unit:mm

ModelDimensions

RS-15-01RS-15 series

RS-15 series

Unit:mm


Unit:mm

ModelDimensions

RS-15-02RS-15 series

RS-15 series


ModelDimensions

RS-15-03RS-15 series

RS-15 series


ModelDimensions

RS-15-04RS-15 series

RS-15 series
