DC SOCKET DC插座

DC097
DC Power Jack Female Socket 11.90mm x 7.50mm PCB Panel Chassis Mount

DC097

卧式DIP 直流电源DC插座 11.90mm*7.50mm STRUCTURE DC socket is a kind of socket matching with the special power supply for computer display. It is composed of transverse socket, longitudinal socket, insulating base, forked contact shrapnel and directional keyway. The two forked contact shrapnel are located in the center of the base, arranged vertically and horizontally, and are not connected with each other APPLICATIONS Video products, digital products, remote control communication products, household appliances, security products, etc


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
電氣額定值/Rating1.0A 30V
驅動力/Actuating force3~20N
尺寸/Dimension11.90mm* 7.50mm
使用壽命/Operating life5,000 cycles
絕緣強度/Dielectric StrengthAC500V
接触电阻/Contact Resistance
30mΩ Max

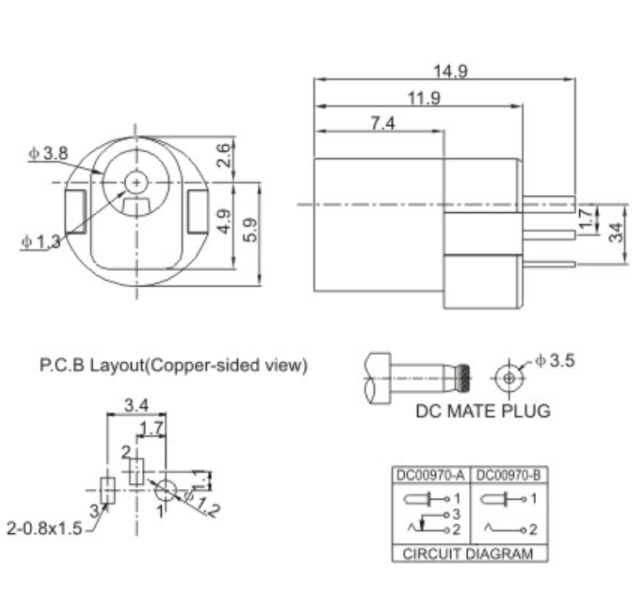

DIMENSIONS

ModelDimensions

DC097DC097

DC097
