TOGGLE SWITCH 鈕子開關

TG-MT02 series
TG-MT02 series
TG-MT02 series
TG-MT02 series
TG-MT02 series
TG-MT02 series
Toggle switch

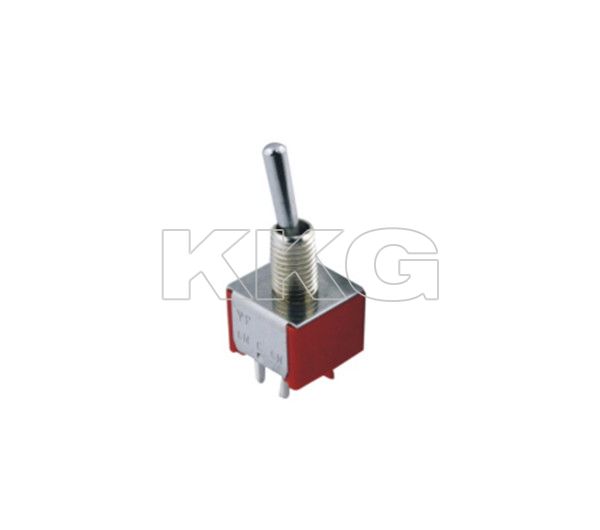

TG-MT02 series

立式DIP 鈕子開關 FEATURE Small contact resistance, accurate operating force error, diversified specifications and other advantages APPLICATIONS Suitable for consumer products, computer products, test instruments, communication equipment, etc


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
Contact resistance  <20mΩ
Insulation resistance500VDC≥1000MΩ
Withstand voltage1500VAC
Electrical life1,0000 cycles
Mechanical life 4,0000 cycles
Operating temperature-25°C to 85°C.


DIMENSIONS

ModelDimensions

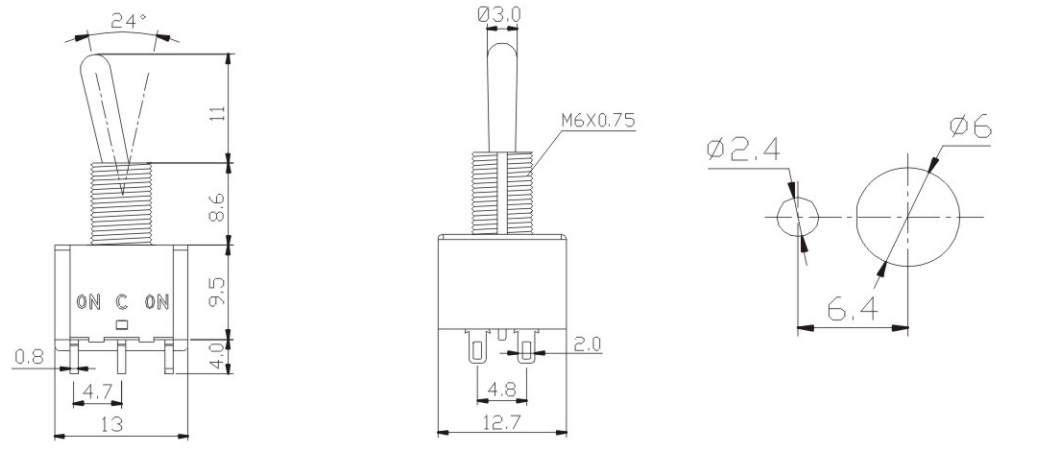

TG-MT02-B01

TG-MT02 series


TG-MT02 series

ModelDimensions

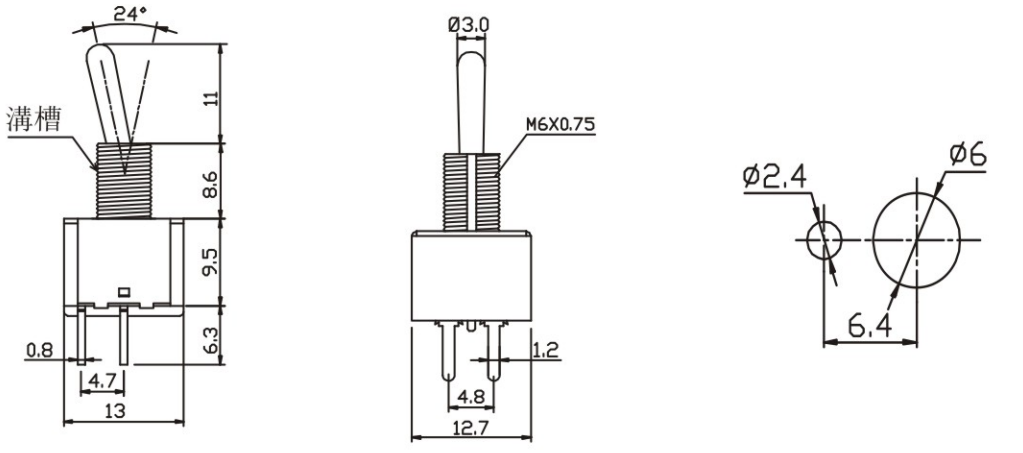

TG-MT02-B02

TG-MT02 series


TG-MT02 series

ModelDimensions

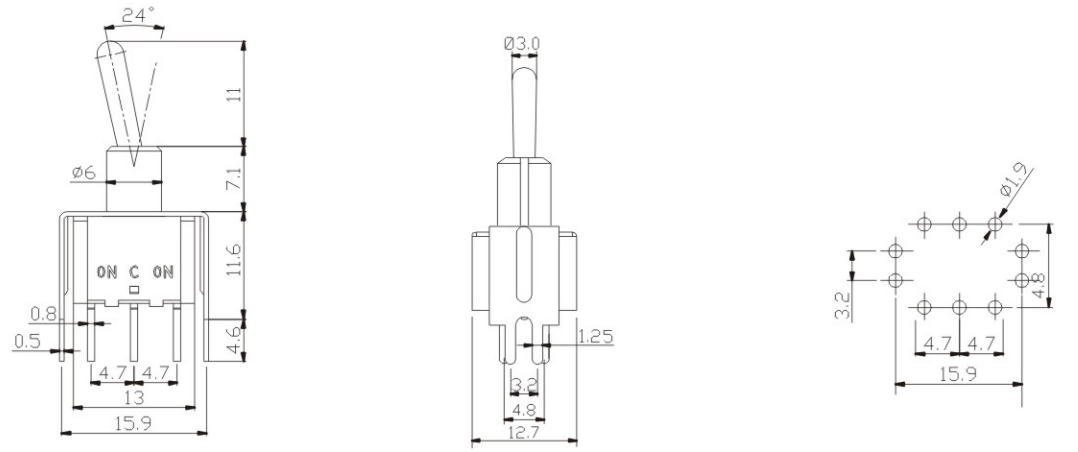

TG-MT02-B03

TG-MT02 series


TG-MT02 series

ModelDimensions

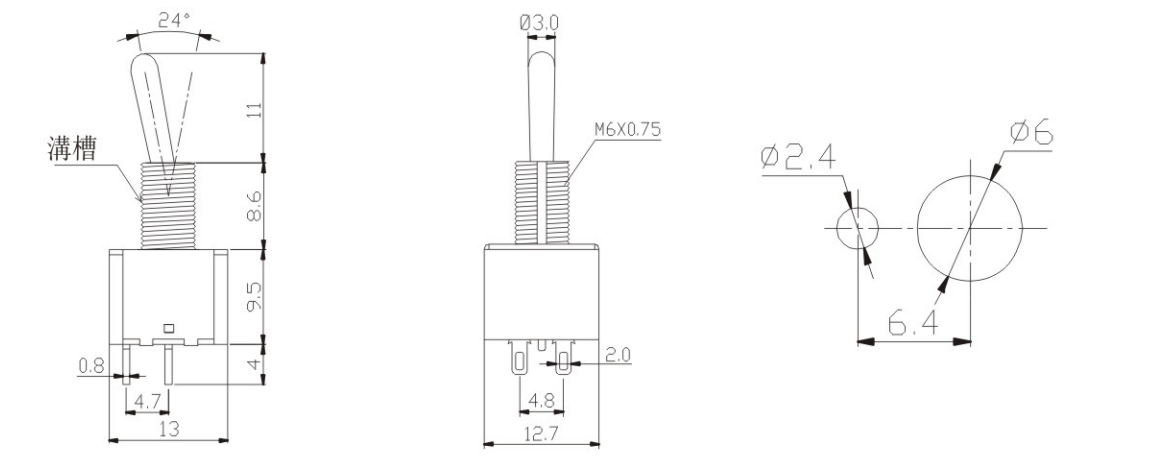

TG-MT02-B04

TG-MT02 series


TG-MT02 series

ModelDimensions

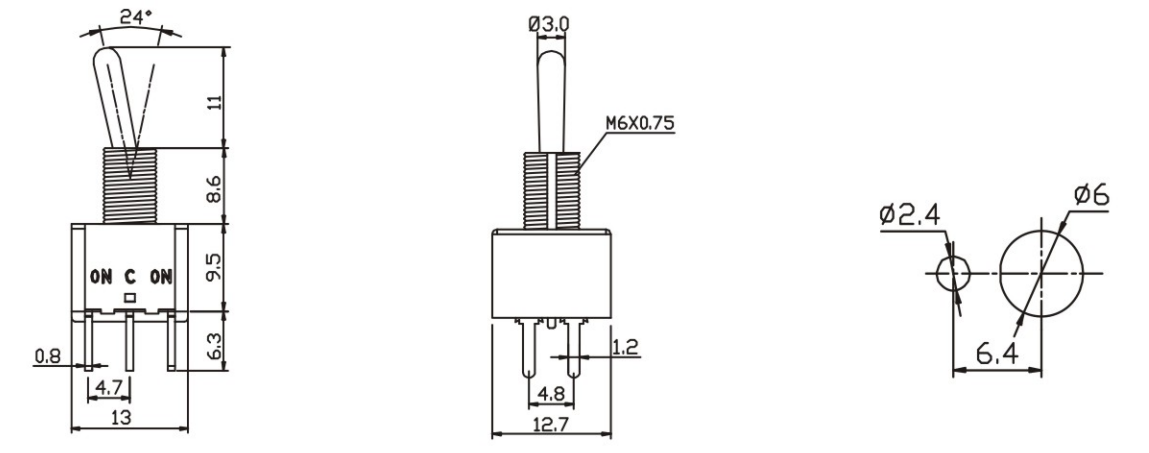

TG-MT02-B05

TG-MT02 series


TG-MT02 series
