RCA SOCKET RCA /AV插座

PSG01546
Gold plated white rca/av socket

PSG01546

鍍金立體純銅白色焊線式Rca連接器 21.00mm*10.60mm FEATURE RCA interface realizes the separate transmission of audio and video, and avoids the degradation of image quality caused by audio / video mixed interference. APPLICATIONS TV sets, VCDs and other products


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作電壓/Working voltageAC 250v
耐壓/Withstand voltage1000v,50Hz,rms
尺寸/Dimension21.00mm* 10.60mm
阻抗/Impedence75 OHM
相對濕度/Relative humiditymax 90%(40℃±2℃)
 工作溫度/Working temperature-25℃-+65℃

絕緣電阻/Insulation resistance

1,000m OHM min

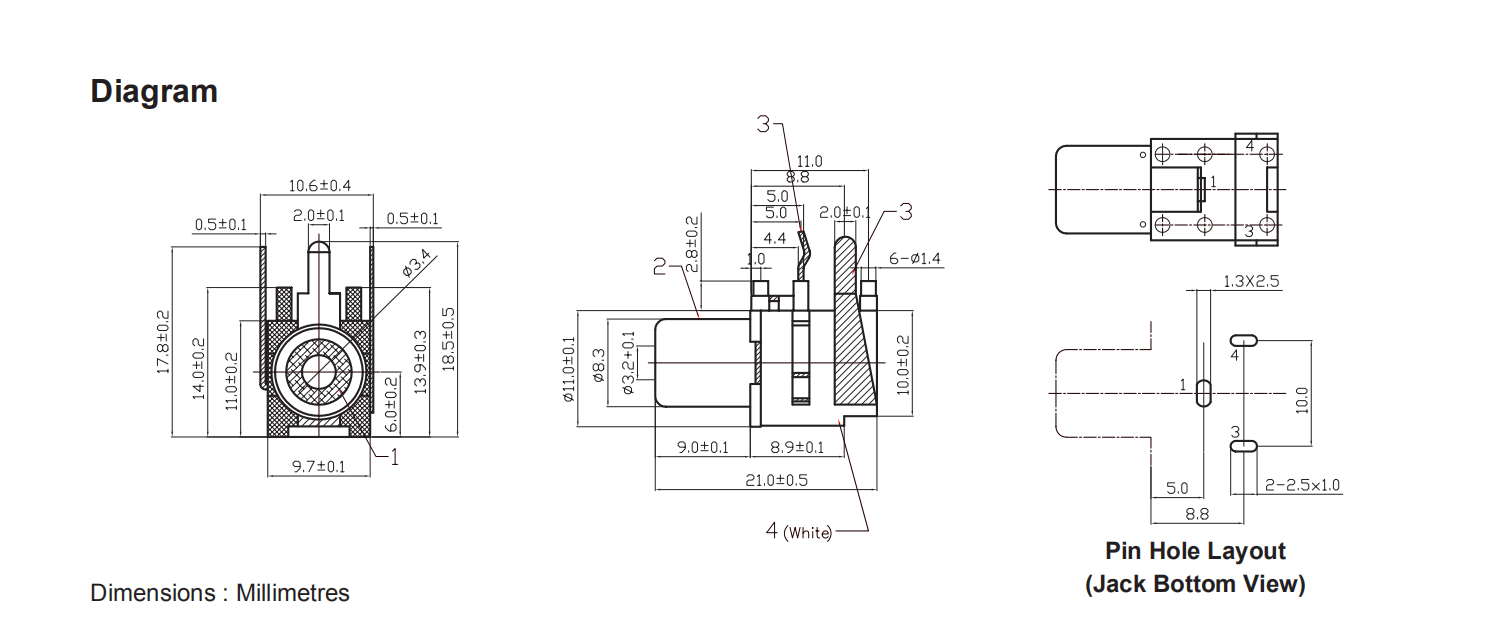

DIMENSIONS



ModelDimensions

PSG01546

PSG01546


PSG01546
