RCA SOCKET RCA /AV插座

RCA-105C
RCA-105C
RCA-105C
RCA-105C

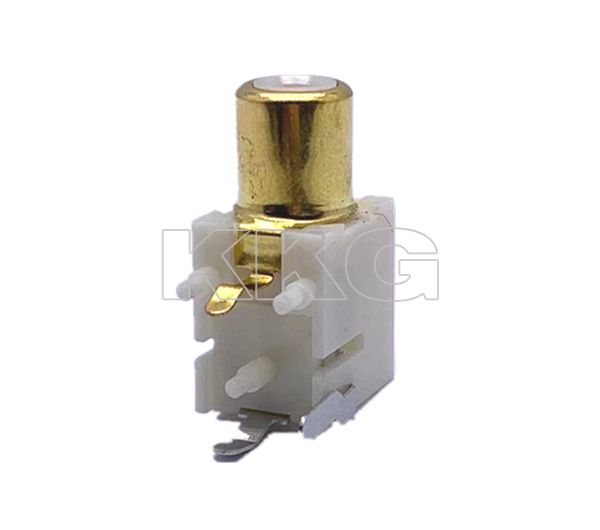

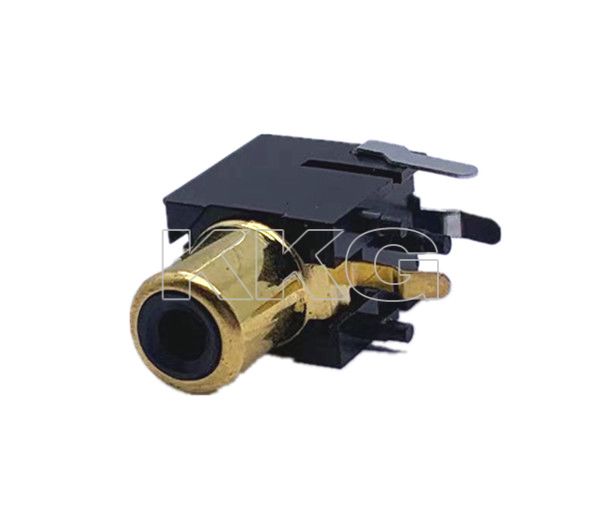

Welding wire gold-plated rca/av socket

RCA-105C

焊线式镀金RCA/AV插座 23.00mm*10.00mm FEATURE RCA interface realizes the separate transmission of audio and video, and avoids the degradation of image quality caused by audio / video mixed interference. APPLICATIONS TV sets, VCDs and other products


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作電壓/Working voltageAC 250v
耐壓/Withstand voltage1000v,50Hz,rms
尺寸/Dimension23.00mm* 10.00mm
阻抗/Impedence75 OHM
相對濕度/Relative humiditymax 90%(40℃±2℃)
 工作溫度/Working temperature-25℃-+65℃

絕緣電阻/Insulation resistance

1,000m OHM min

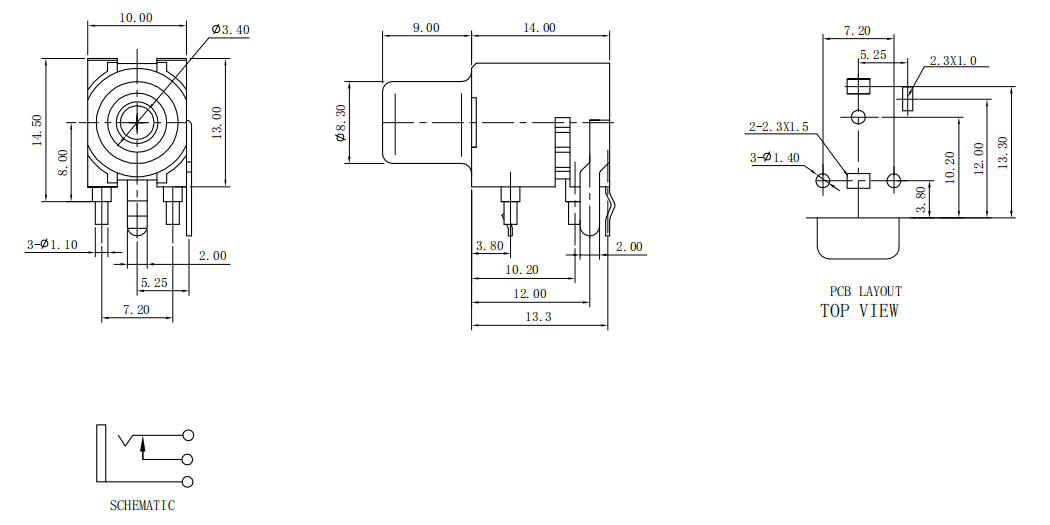

DIMENSIONS


ModelDimensions

RCA-105CRCA-105C


RCA-105C

ModelDimensions

RCA-105CRCA-105C


RCA-105C

ModelDimensions

RCA-105CRCA-105C


RCA-105C
