MINI USB SOCKET USB 2.0 A/B

USB-UA035J

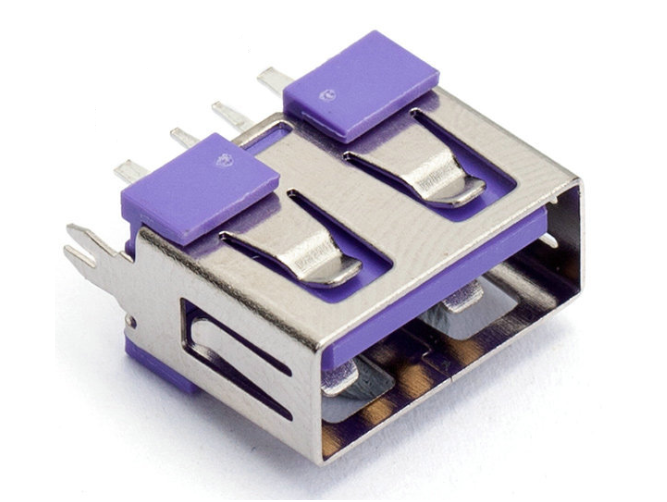

USB 2.0 A /BType Male Plug Socket Connector

USB-UA035J

USB AF 短體直插180度 大電流 FEATURE ‧ 12.70mm*13.10mm ‧ 180 degrees DIP ‧ Wave soldering APPLICATIONS ‧ Used in mobile, audio-visual, automotive electronics, multimedia, electrical appliances, Electronic toys visible interphone MP3, MP4, DVD


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5A/contact terminal
额定电压/Voltage Rating30V DC
接触电阻/Contact Resistance30MΩ
尺寸/Dimension12.70mm*13.10mm
电压/Dielectric Withstabding Voltage100V DC
绝缘电阻/Insulation Resistance100MΩ min

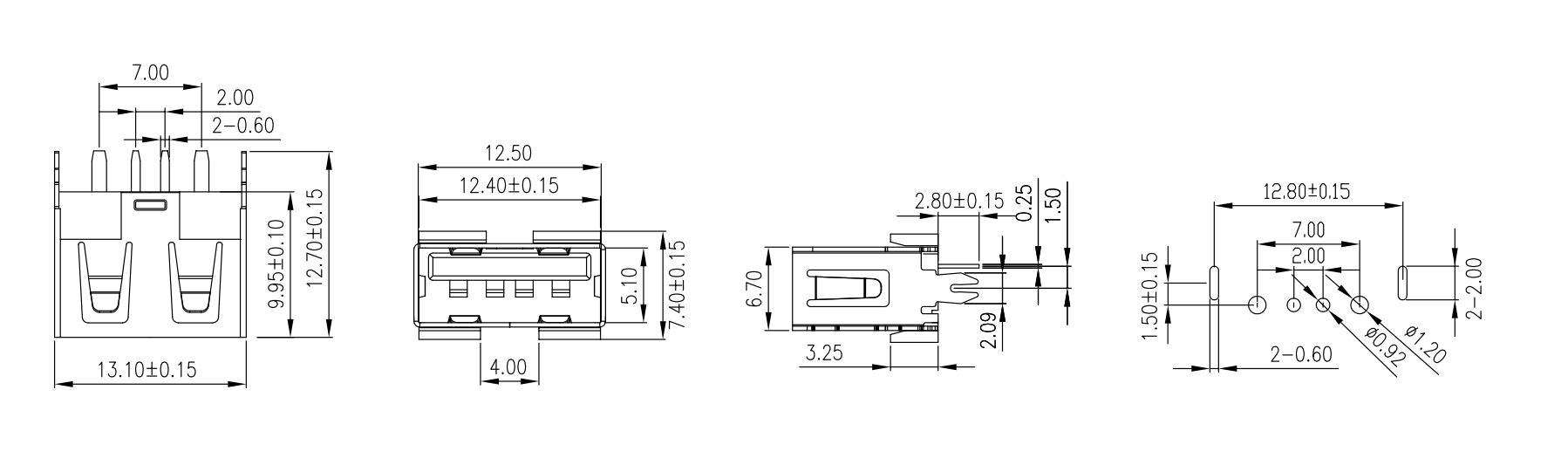

DIMENSIONS

Unit:mm

ModelDimensions

USB-UA035JUSB-UA035J

USB-UA035J

Unit:mm


Unit:mm
