MICRO USB SOCKET Micro/Mini USB

USB-MG002V
Micro/Mini USB JACK SERIES

USB-MG002V

MINI USB 10PF有柱前插後貼 FEATURE ‧ 8.80mm*7.20mm ‧ 90 degrees SMD ‧ Reflow soldering APPLICATIONS ‧ Used in mobile, audio-visual, automotive electronics, multimedia, electrical appliances, Electronic toys visible interphone MP3, MP4, DVD


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating1A/contact terminal
额定电压/Voltage Rating30V DC
接触电阻/Contact Resistance30MΩ
尺寸/Dimension8.80mm*7.20mm
电压/Dielectric Withstabding Voltage100V DC
绝缘电阻/Insulation Resistance100MΩ min

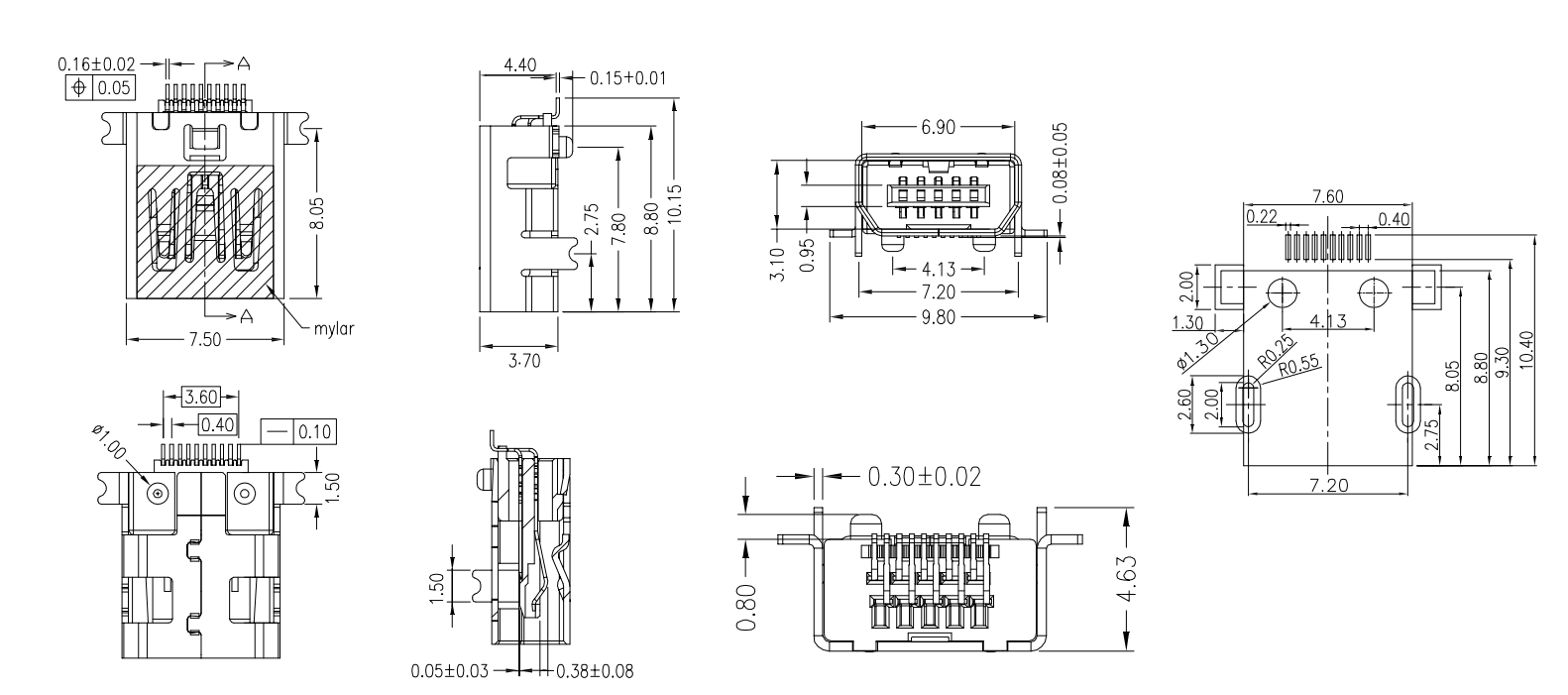

DIMENSIONS

Unit:mm

ModelDimensions

USB-MG002VUSB-MG002V

USB-MG002V

Unit:mm


Unit:mm
