MULTI-FUNCTION SWITCH 多功能開關

TM-1501
Multi-function wheel switch

TM-1501

撥輪開關 FEATURE ‧ 11.60mm*11.80mm ‧ 3 gears ‧ SMD installation APPLICATIONS ‧ Digital cameras, Bluetooth headsets, MP3|MP4, cars, mobile phones, stereos, white goods, health care products, communication equipment

檔案下載 產品詢價

產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定值/RatingDC 12V 500MA MAX
推动行程/Travel Push0.7MM
两方向力度/Forcel Lever0.65±0.3N
中心力度/CENTER2.5±1N
壽命/Life Cycles100000 Cycles

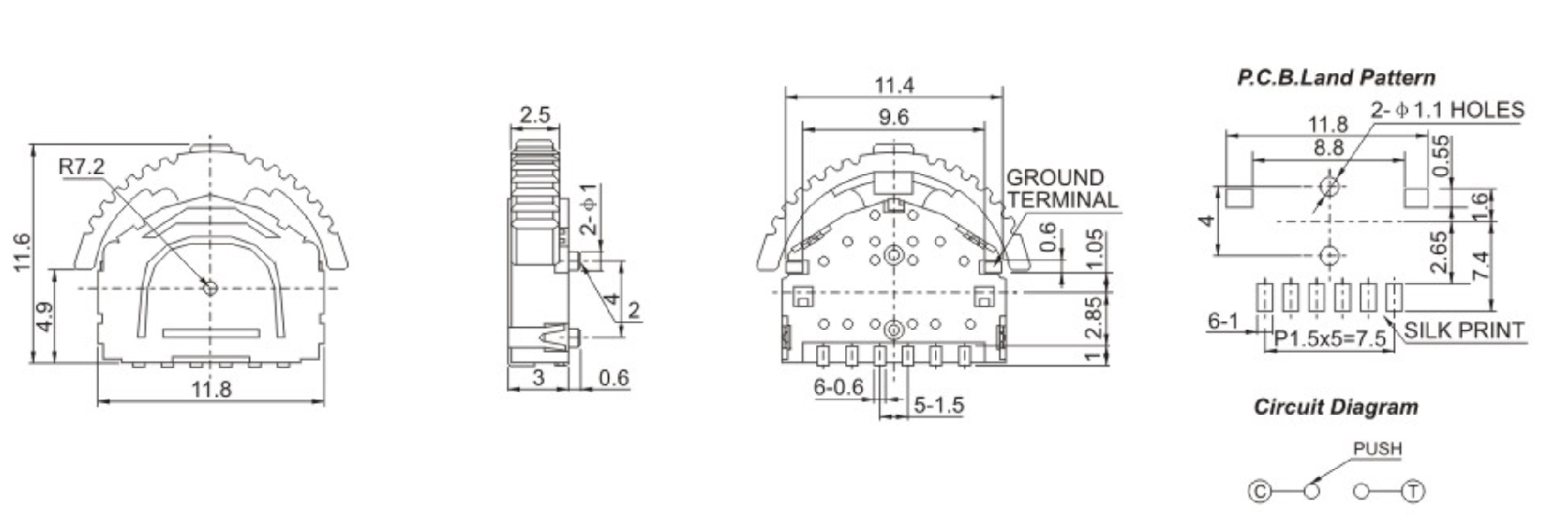

DIMENSIONS

Unit:mm

ModelDimensions

TM-1501TM-1501

TM-1501

Unit:mm


Unit:mm
