MULTI-FUNCTION SWITCH 多功能開關

TM-2020
Joystick potentiometer

TM-2020

操縱桿電位器 FEATURE ‧ 20.00mm*20.00mm ‧ Slide on the 2D flat ‧ Integrated tact switch APPLICATIONS ‧ Digital cameras, MP3|MP4, automobiles, health care products, robots and industrial machinery, game consoles, drones.

檔案下載 產品詢價

產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
全阻值/Total resistance10KA
额定功率/Rated power0.0125W
工作电流/Working current50MA DC12V
滑柄行程/Slide stroke2mm
操作力距/Operating torque60±20gf
寿命/life1000000 Times

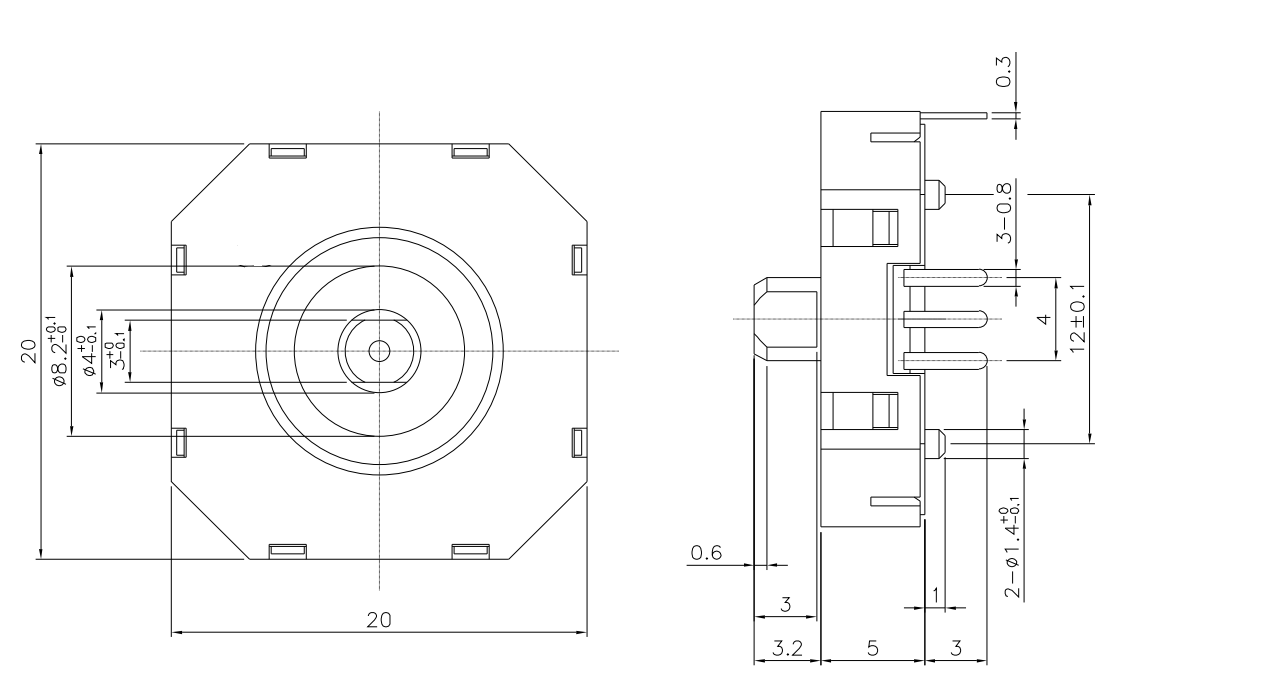

DIMENSIONS

Unit:mm

ModelDimensions

TM-2020TM-2020

TM-2020
