ø3.5耳機插座

PJ-325 Series
3.5 mm aperture DIP horizontal audio phone jack

PJ-325 Series

3.5mm孔徑/立式耳機插座 FEATURE ‧ 18.00mm*8.10mm H=12.30mm ‧ Horizontal DIP ‧ Reflow soldering APPLICATIONS ‧ Mainly used in the three-dimensional design of mobile phones, CD players, wireless phones, MP3 players, digital laptops, DVDs, digital cameras, etc...


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
電氣額定值/Rating0.5A,30V
操作力/Operating Force3~30N
尺寸/Dimension

18.00mm*8.10mm

電氣壽命/Electrical Life5,000 Cycles Min
絕緣強度/Dielectric StrengthAC500V
接触电阻/Contact Resistance
50mΩ Max

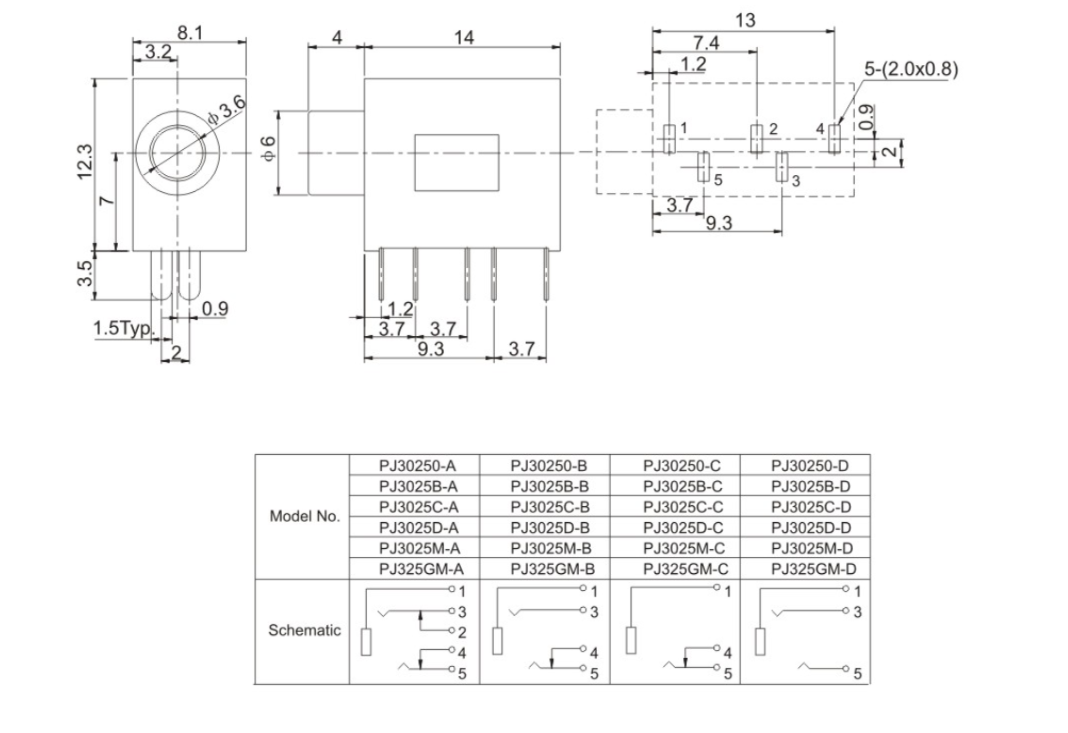

DIMENSIONS

ModelDimensions

PJ-325PJ-325 Series

PJ-325MPJ-325 SeriesPJ-325GMPJ-325 Series

PJ-325BPJ-325 Series

PJ-325CPJ-325 SeriesPJ-325DPJ-325 Series

PJ-325 Series
