ø3.5耳機插座

PJ-3287
3.5 mm aperture SMT horizontal audio phone jack

PJ-3287

3.5mm孔徑/貼片式耳機插座 FEATURE ‧ 12.40mm*6.50mm ‧ Horizontal SMT ‧ Reflow soldering APPLICATIONS ‧ Mainly used in the three-dimensional design of mobile phones, CD players, wireless phones, MP3 players, digital laptops, DVDs, digital cameras, etc...


產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
電氣額定值/Rating0.5A,30V
操作力/Operating Force3~30N
尺寸/Dimension

12.40mm*6.50mm

電氣壽命/Electrical Life5,000 Cycles Min
絕緣強度/Dielectric StrengthAC500V
接触电阻/Contact Resistance
50mΩ Max

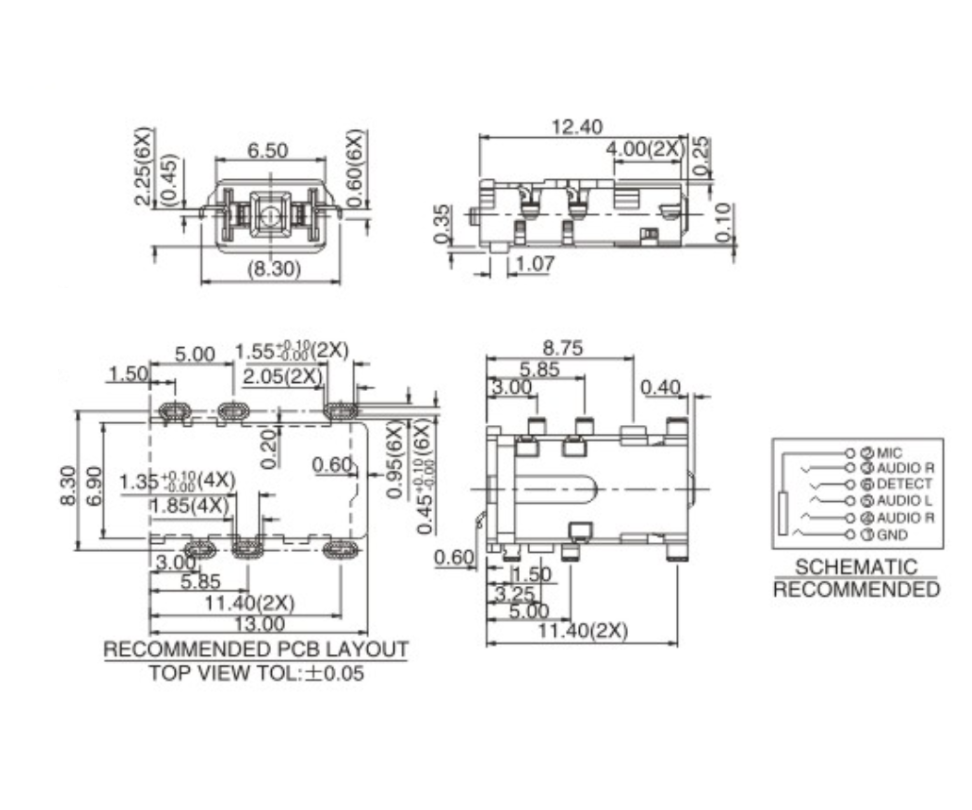

DIMENSIONS
ModelDimensions

PJ-3287PJ-3287

PJ-3287
