ROCKER SWITCH 翹板開關

PR-2424 series
Multi-position rocker power switch

PR-2424 series

翹板開關 FEATURE ‧ 24.00mm*24.00mm ‧ 2 gears ‧ Single row of feet APPLICATIONS ‧ Low-voltage electrical appliances, household appliances, instruments, electronic toys, drinking fountains


產品說明

COMMON SPECIFICATIONS


CharacteristicsSpecification
電流/Current20A 125VAC/15A 250VAC
接触电阻/Contact Resistance35MAX
操作溫度/Operating temperature-25℃+85℃
絕緣電阻/Insulation resistance500VDC 100MAX min
耐電壓/Withstand voltage1500VAC 1min
電器壽命/Electrical life10,000cycles

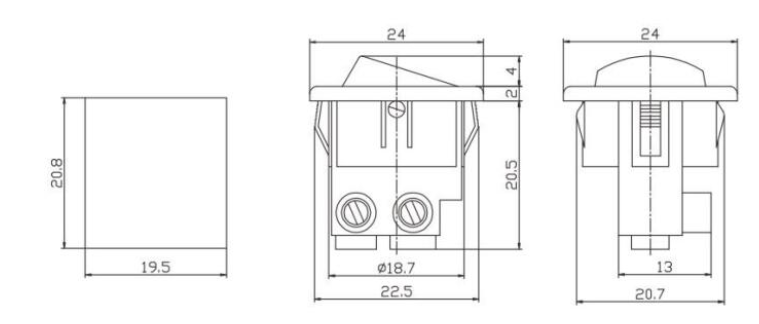

DIMENSIONS

ModelDimensions

PR-2424-01PR-2424 series

PR-2424 series
